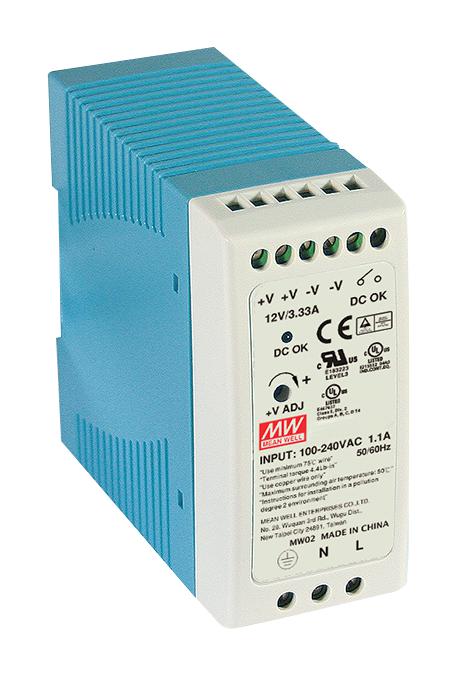

MEAN WELL MDR405 Industrial DIN Rail Power Supply
The MDR-40 series is a 40W single output industrial power supply designed for DIN rail mounting, suitable for hazardous locations with Class I, Div 2 T4 ratings. It features universal AC input, high efficiency up to 88%, and comprehensive protections including short circuit, overload, and overvoltage protection. The compact, fanless design ensures reliable operation across a wide temperature range of -20°C to +70°C. It includes a DC OK relay contact and LED indicator, with certifications like UL, TUV, and CE, making it ideal for industrial automation and control systems.
MEAN WELL MDR405 Industrial DIN Rail Power Supply Specifications:
- Power Rating: 40W
- Output Voltage Options: 5V, 12V, 24V, 48V
- Rated Currents: 6A (5V), 3.33A (12V), 1.7A (24V), 0.838A (48V)
- Input Voltage Range: 85~264VAC / 120~370VDC
- Efficiency: Up to 88%
- Ripple & Noise: 80mVp-p (5V), 120mVp-p (12V), 450mVp-p (24V), 200mVp-p (48V)
- Output Voltage Adjustment Range: 5~6V (5V), 12~18V (12V), 24~30V (24V), 48~56V (48V)
- Protections: Short circuit, Overload, Overvoltage with automatic recovery
- Dimensions: 40x90x100mm
- Operating Temperature: -20°C to +70°C
- Mounting: DIN rail TS-35/7.5 or TS-35/15
- Certifications: UL508, UL60950-1, TUV EN60950-1, CE, BSMI, CNS, EAC
- Material: Metal case with fanless cooling
- Standards: IEC, EN compliance, heavy industry immunity, emissions standards
- MTBF: 304.7K hours
Buy the Buy MEAN WELL Industrial Power Supply Part Number MDR-40 series Online
Order the MEAN WELL MDR-40 series industrial DIN rail power supply online today and experience reliable, efficient power delivery with comprehensive protections, compact design, and certifications suitable for hazardous and industrial environments. Ideal for automation, control panels, and distribution systems, this 40W power supply features universal input, high efficiency, and automatic recovery from overloads. Ensure your industrial applications perform optimally by choosing this robust, fanless power solution designed for long-lasting durability and easy installation on DIN rails.
Get MEAN WELL MDR-40 series power supply today—built for industrial automation with reliable power and comprehensive protection features.
Frequently Asked Questions
Where can I buy MEAN WELL MDR405?
You can click on the BUY or RFQ button to purchase MDR405 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDR405?
You can download the MDR405 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDR405?
MEAN WELL
