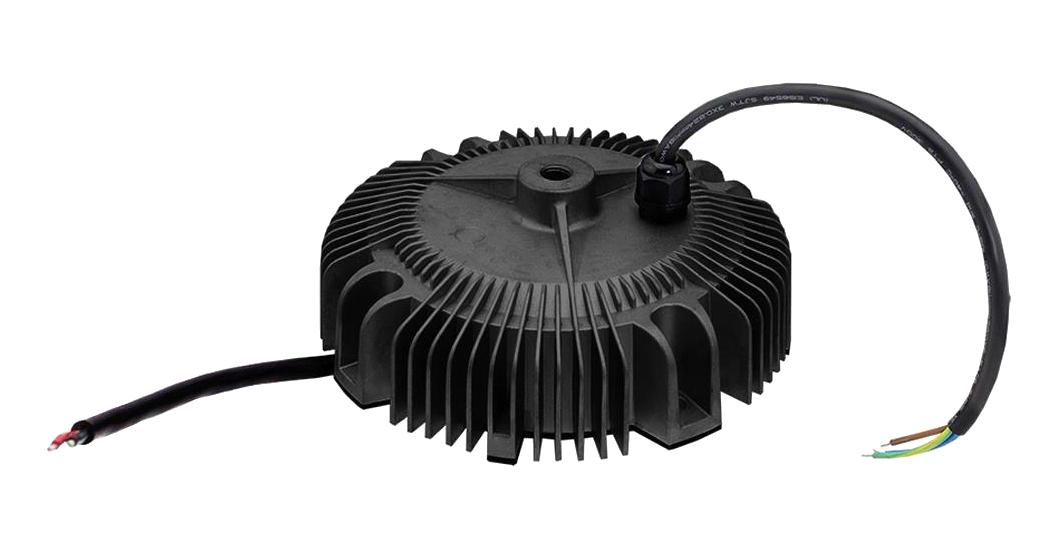

MEAN WELL HBG24024 LED Power Supply
The HBG-240 series is a high-efficiency 240W AC/DC LED driver designed for versatile indoor and outdoor LED lighting applications. Featuring a circular metal housing with IP67/IP65 protection, it supports both constant voltage and constant current modes with rated voltages between 24V and 60V. With an efficiency of up to 93.5%, a fanless design, and operational temperature range from -40°C to +75°C, it is suitable for LED bay, stage, and spot lighting. It includes multiple dimming options like 1-10VDC, PWM, and DALI, ensuring flexible system integration and long-lasting performance exceeding 50,000 hours.
MEAN WELL HBG24024 LED Power Supply Specifications:
- Power: 240W
- Input Voltage: 90~305VAC, 127~434VDC
- Output Voltage: 24V, 36V, 48V, 60V (adjustable via potentiometer)
- Rated Current: 2.4A - 10A depending on model
- Efficiency: Up to 93.5%
- Ripple & Noise: 150mVp-p to 350mVp-p depending on model
- Operating Temperature: -40°C to +75°C
- Ingress Protection: IP67/IP65
- Dimensions: 191.5mm x 69mm (D x H)
- Lifetime: >50,000 hours
- Dimming: 1-10VDC, PWM, Resistance, DALI
- Protection Features: Over current, over voltage, over temperature, short circuit
- Certifications: UL, CSA, ENEC, BIS, EAC, IP65/IP67 approved
- Power Factor: >0.98 at full load
- Total Harmonic Distortion: <20%
Buy the Mean Well HBG24024 – Reliable LED Driver for Industrial Applications
Get the reliable HBG-240 series LED driver online today for your indoor and outdoor lighting needs. With a robust design, high efficiency, and versatile dimming options, this 240W power supply ensures long-lasting performance and flexible installation. Perfect for LED bay, stage, and spot lighting, it offers excellent ingress protection and operating temperature range from -40°C to +75°C. Enhance your lighting system with this advanced, high-quality driver, and enjoy easy procurement and fast delivery directly from our online store.
Order your Mean Well Series HBG-240 LED driver today and experience dependable performance for your industrial lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL HBG24024?
You can click on the BUY or RFQ button to purchase HBG24024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG24024?
You can download the HBG24024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG24024?
MEAN WELL
