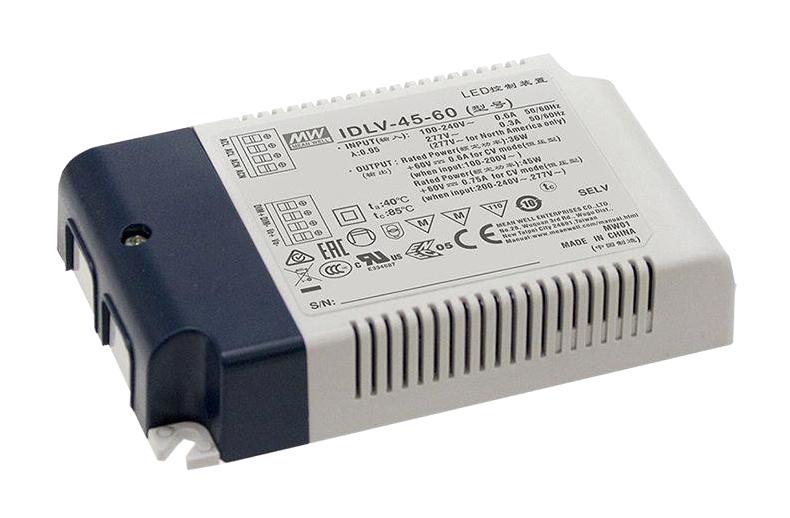

MEAN WELL IDLV4548 LED Driver
The IDLV-45 series is a highly efficient 45W LED driver designed for indoor LED lighting, decorative lighting, and architecture applications. Operating from 90~295VAC, it features constant voltage PWM-style output with frequency of 1KHz, offering flexible models with output voltages from 12V to 60V. The driver boasts up to 90% efficiency, fanless design, and a broad temperature range of -20°C to +85°C for reliable operation. Its built-in active PFC ensures power quality, and various dimming options provide design flexibility. Compact and reliable, it is suitable for professional LED lighting setups.
MEAN WELL IDLV4548 LED Driver Specifications:
- Input Voltage Range: 99~295VAC
- Output Voltage Range: 12V, 24V, 36V, 48V, 60V
- Rated Power: 36W to 45.12W
- Rated Current: 3.0A, 1.88A, 1.254A, 0.944A, 0.754A
- Dimming Range: 0~100%
- PWM Frequency: 1KHz (typical)
- Efficiency: up to 90%
- Inrush Current: 30A (cold start at 230VAC)
- Leakage Current: <0.75mA/277VAC
- No Load Power Consumption: <0.5W (Blank-Type)
- Protection: Over Current, Short Circuit
- Working Temperature: -20°C to +85°C
- Dimensions: 120 x 75 x 25 mm
- Safety Clearance: I/P-O/P: 3.75KVAC
- Humidity: 20-90% RH non-condensing
Buy the Mean Well Series DLV-45 LED Driver: IDLV-45-48
Experience superior LED lighting performance with the Mean Well IDLV-45-48 LED driver. Offering up to 90% efficiency, broad voltage compatibility, and multiple dimming options, this compact and fanless driver ensures reliable operation in indoor, architectural, and decorative lighting applications. Its robust construction, thermal stability up to 85°C, and built-in active PFC make it an ideal choice for professional lighting installations. Purchase online today to enhance your lighting project with dependable power and flexible control features.
Buy Mean Well IDLV-45-48 now and experience unmatched reliability and performance in professional LED lighting systems.
