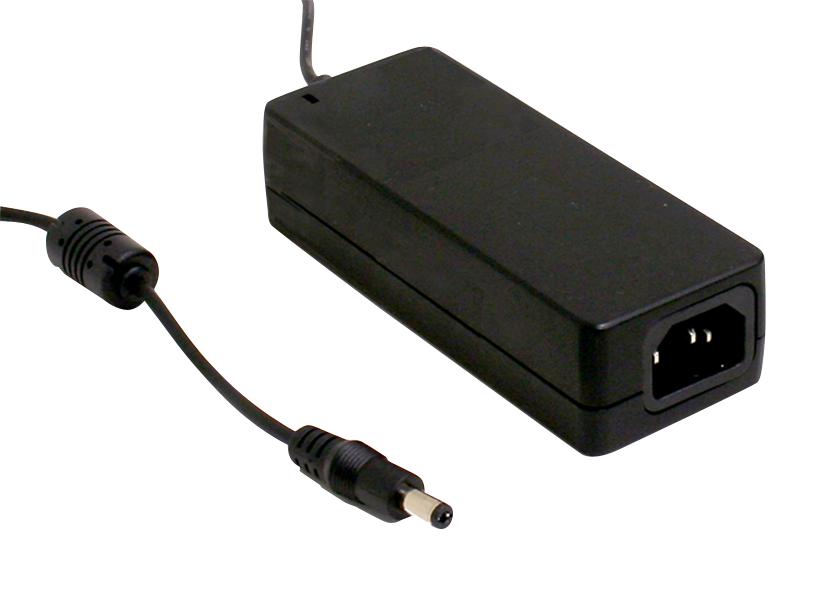

MEAN WELL GSM60A48P1J Medical Power Adapter
The GSM60A48P1J is a high-reliability medical power adapter supporting medical safety standards, with a 48VDC output at 2.54A, offering high efficiency up to 91%, ultra low leakage current, and full compliance with international medical and energy efficiency standards. Designed for medical devices like infusion pumps, patient monitors, and portable hemodialysis machines, it features a fanless design, rugged plastic case, optional lockable DC connector, and is certified for safety and EMC standards with 3 years warranty, ensuring reliable and energy-efficient operation in medical environments.
MEAN WELL GSM60A48P1J Medical Power Adapter Specifications:
- Output Voltage: 48V
- Rated Current: 2.54A
- Rated Power: 60W
- Input Voltage Range: 80-264VAC
- Efficiency: Up to 91%
- Leakage Current: <100uA
- Ripple & Noise: 150mVp-p
- Dimensions: 125 x 50 x 31.5mm
- Working Temperature: -30°C to +60°C (derating applied beyond 40°C)
- Storage Temperature: -40°C to +85°C
- Humidity: 20%–90% RH non-condensing
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Safety Standards: EN60601-1, UL60601-1, IEC60601-1
- EMC Compliance: EN55011, EN61000-4-2,3,4,5,6,8,11, EN55024
- Construction: Fully enclosed plastic case
- Certifications: UL, TUV, CCC, CE, CB
Buy the GOWAC Series GSM60A Medical Power Supply: GSM60A48P1J
Purchase the GOWAC GSM60A48P1J medical power adapter online today for reliable, energy-efficient performance. Certified for international safety standards, it offers a 48V output at 2.54A, with 91% efficiency and ultra-low leakage current, making it ideal for medical equipment such as infusion pumps, patient monitors, and portable dialysis systems. Its fanless design ensures silent operation with a rugged plastic case for durability, while the 3-year warranty guarantees peace of mind for healthcare providers requiring dependable power solutions.
Buy GOWAC GSM60A48P1J now and experience unmatched reliability and performance in your medical devices with efficient, robust power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60A48P1J?
You can click on the BUY or RFQ button to purchase GSM60A48P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60A48P1J?
You can download the GSM60A48P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60A48P1J?
MEAN WELL
