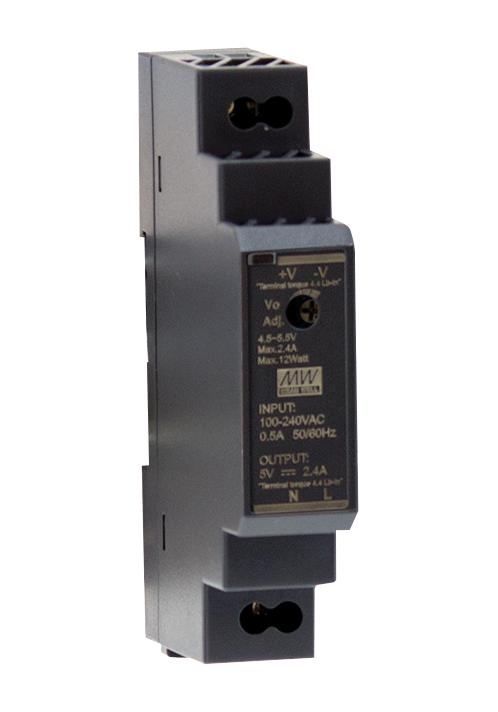

MEAN WELL HDR1512 DIN rail power supply
The HDR-15 series is an economical 15W ultra-slim DIN rail power supply designed for industrial and household automation systems. Its compact 17.5mm width allows easy installation on TS-35/7.5 or TS-35/15 mounting rails, saving space. Operating efficiently up to 87%, it supports a wide AC input range of 85-264VAC (277VAC operational). Suitable for temperatures from -30°C to +70°C, it features protections for short circuits, overloads, and overvoltage, along with universal output voltage adjustments. Compliant with international safety and EMC standards, it ensures reliable performance in various automation and control applications.
MEAN WELL HDR1512 DIN rail power supply Specifications:
- Dimensions: 17.5 x 90 x 54.5mm (W x H x D)
- Input voltage: 85-264VAC, 120-370VDC (390VDC operational)
- Input frequency: 47-63Hz
- Rated output power: 12W to 15.4W depending on model
- Output voltages: 12V, 15V, 24V, 48V with adjustable range
- Rated current: 2.44A, 1.25A, 1A, 0.63A, 0.32A
- Ripple & noise: 80mVp-p to 420mVp-p (model dependent)
- Efficiency: up to 87%
- Temperature range: -30°C to +70°C
- Protection: Short circuit, overload, overvoltage
- Isolation resistance: 100MΩ at 500VDC
- Certifications: IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16
- Dimensions: 17.5mm width, suitable for TS-35/7.5 or TS-35/15 DIN rail mounting
Buy the Mean Well Series HDR-15 15W DIN Rail Power Supply: HDR1512
Enhance your automation and industrial control setups with the HDR-15 series power supply. Its ultra-slim profile, wide input range, high efficiency, and comprehensive protections make it the ideal choice for space-constrained applications. Easy to install on TS-35/7.5 or TS-35/15 rails, this power supply ensures stable voltage and safe operation under various environmental conditions. Trust HDR-15 for durable, reliable power, backed by a 3-year warranty and compliance with international safety standards. Buy online today for seamless integration and performance.
Buy Mean Well HDR1512 now and experience unmatched reliability and performance in industrial and automation power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL HDR1512?
You can click on the BUY or RFQ button to purchase HDR1512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HDR1512?
You can download the HDR1512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HDR1512?
MEAN WELL
