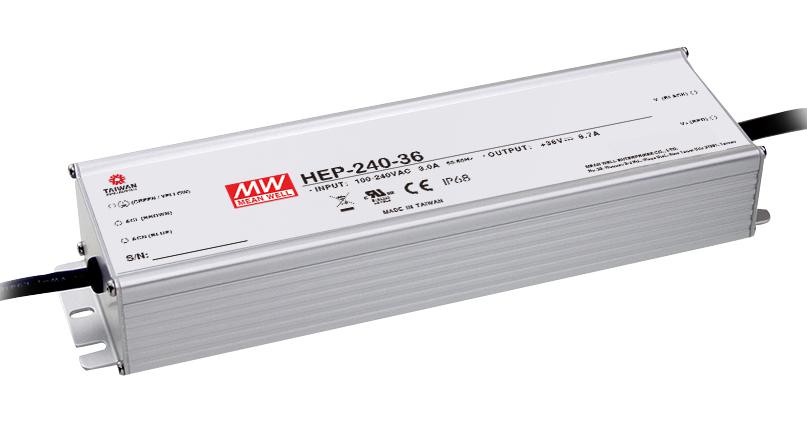

MEAN WELL HEP24048A industrial power supply
HEP-240 is a robust 240W industrial power supply designed for harsh environments and wide temperature ranges from -55°C to +70°C. Encased in an aluminum housing filled with heat-conducted silicone, it features high efficiency up to 93.5% and a fanless design based on free air convection. Suitable for outdoor telecom, electronic signage, and petroleum facilities, it offers IP65, optional IP68 ratings, and protections against short circuit, overload, overvoltage, and temperature. Certified to UL/CSA, it withstands 6KV surge, 10G vibration, and operates reliably across altitudes up to 5000 meters with a 6-year warranty.
MEAN WELL HEP24048A industrial power supply Specifications:
- Rated Power: 240W
- Input Voltage: 90~305VAC, 127~431VDC
- Output Voltage Options: 12V, 15V, 24V, 36V, 48V, 54V
- Rated Current: 16A (12V), 15A (15V), 4.7A (24V), 3A (36V), 2.5A (48V), 2.23A (54V)
- Ripple & Noise: 150mVp-p to 350mVp-p depending on model
- Voltage Adjustment Range: 2.4~16V (15V model), 2.4~25.8V (24V), 3.35~38.5V (36V), 44.8~51.2V (48V), 50~57V (54V)
- Voltage Tolerance: 1.0-2.5%
- Line & Load Regulation: ±0.5%, ±15-20%
- Efficiency: Up to 93.5%
- Operating Temperature: -55°C to +70°C with derating
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Certifications: UL, CSA, CE, CB
- Vibration Resistance: 10G
- Surge Immunity: 6KV
- Altitude: Up to 5000 meters
- Dimensions: 244.2 mm x 68 mm x 38.8 mm
- Weight: Approximately 1.3 kg per unit
- Cooling: Fanless, convection cooling
- Enclosure: Aluminum case, IP65; optional IP68 rated models available
Buy the Meanwell Series 240W Power Supply: HEP24048A
Order the Meanwell HEP24048A industrial power supply online today to ensure reliable and efficient power delivery for outdoor telecom, signage, and hazardous environments. Featuring high efficiency up to 93.5%, wide temperature operation from -55°C to +70°C, and robust IP65/IP68 protection ratings, this fanless model is ideal for demanding applications. With advanced protections including short circuit, overload, overvoltage, and thermal shutdown, plus certifications to UL and CSA, it guarantees safety, longevity, and superior performance in harsh conditions. Secure your power solution now for peace of mind and uninterrupted operation.
Get Meanwell 240W power supply today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL HEP24048A?
You can click on the BUY or RFQ button to purchase HEP24048A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HEP24048A?
You can download the HEP24048A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HEP24048A?
MEAN WELL
