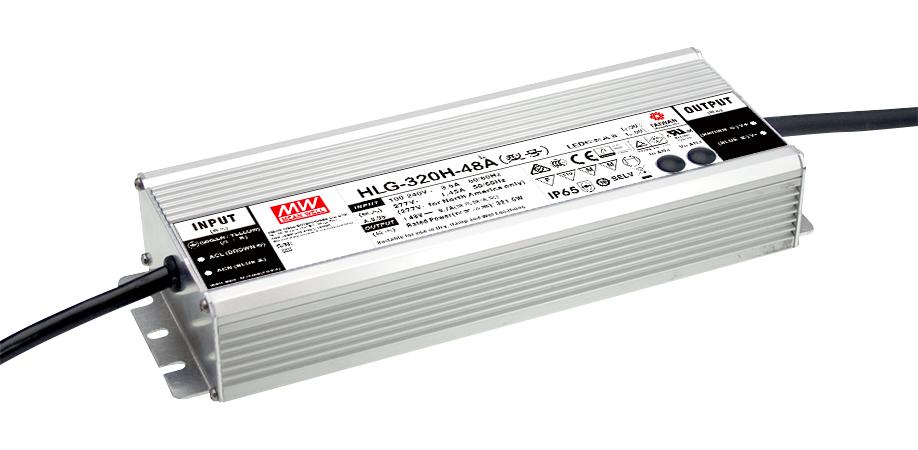

MEAN WELL HLG320H54A LED Power Supply
The HLG-320H series is a 320W AC/DC LED driver designed for versatile indoor and outdoor lighting applications, including street, high bay, parking, greenhouse, and fishing lamps. It features dual mode constant voltage and constant current outputs, with adjustable output via potentiometer and multiple dimming options such as 1-10V, PWM, or resistance. The robust metal housing with IP67/IP65 ingress protection allows operation from -40°C to +90°C, ensuring high efficiency up to 94% and a lifetime exceeding 62,000 hours. The driver complies with safety standards and offers optional functions like timer dimming and Class I Division 2 use, making it ideal for demanding lighting systems.
MEAN WELL HLG320H54A LED Power Supply Specifications:
- Rated Power: 320W
- Input Voltage: 90-305VAC, 127-431VDC
- Output Voltage Range: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Constant Current Region: 6-12V to 27-54V depending on model
- Rated Current: 22A at 12V, 19A at 15V, 13.34A at 20V, 10.7A at 24V, 8.9A at 30V, 7.65A at 36V, 6.7A at 42V, 5.95A at 48V, 5.95A at 54V
- Ripple & Noise: Max 250-350 mVp-p depending on model
- Efficiency: Up to 95% at 230VAC, 277VAC
- Protection: Over current 25-108%, short circuit, over temperature
- Operating Temperature Range: -40°C to +90°C
- Ingress Protection: IP67/IP65 depending on model
- Dimensions: 252 x 90 x 43.8 mm
- Safety Standards: UL, CSA, EN55015, EN55032, EN61000-3-2/3, GB17743, GB17625.1
- Lifetime: >62,000 hours at Tcase <=75°C
- Certification: UL, CSA, EN/IEC compliant
Buy the Buy MEAN WELL HLG-320H54A Part Number HLG320H54A Online
Upgrade your lighting system with the MEAN WELL LED power supply. This 320W model offers dual mode voltage and current output, high efficiency up to 95%, and a robust IP67/IP65 rated metal housing suitable for indoor and outdoor applications. Its adjustable output via potentiometer and multiple dimming options including 1-10V, PWM, and resistance provide versatile control. Engineered for reliability with a lifetime exceeding 62,000 hours, it’s perfect for street, high bay, parking, greenhouse, and fishing lamps. Purchase online for fast delivery and expert support.
Get MEAN WELL HLG-320H54A today—built for high-efficiency outdoor LED lighting with adjustable output and long-lasting durability.
Frequently Asked Questions
Where can I buy MEAN WELL HLG320H54A?
You can click on the BUY or RFQ button to purchase HLG320H54A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG320H54A?
You can download the HLG320H54A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG320H54A?
MEAN WELL
