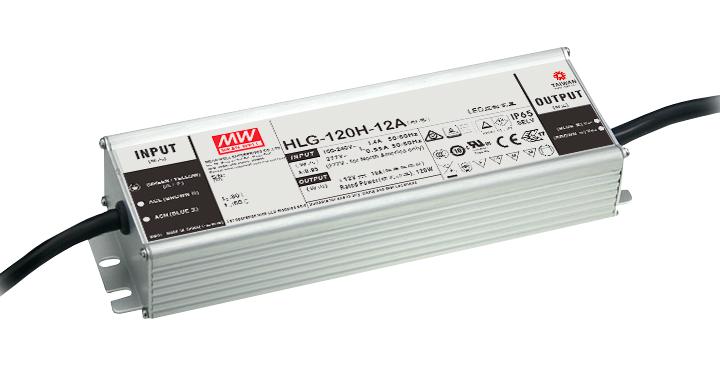

MEAN WELL HLG120H24 LED Driver
The HLG-120H series is a 120W AC/DC LED driver supporting dual constant voltage and constant current modes. Operating from 90 to 305VAC, it offers various rated voltages from 12V to 54V with high efficiency up to 93.5%. Features include IP67/IP65 ratings for indoor and outdoor use, fanless operation from -40°C to +80°C, and multiple dimming options such as 3-in-1 (1-10VDC, PWM, resistance). Ideal for outdoor LED lighting, street lamps, high bays, and hazardous locations with a lifetime exceeding 62,000 hours and a 7-year warranty.
MEAN WELL HLG120H24 LED Driver Specifications:
- Input Voltage: 90-305VAC, 47-63Hz
- Output Voltage: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Power: 120W (varies slightly with model)
- Rated Current: 10A, 6A, 5A, 4A, 3.44A, 2.9A, 2.5A, 2.3A
- Ripple & Noise: Max. 200mVp-p
- Efficiency: Up to 93.5%
- Dimming: 3-in-1 (1-10V, PWM, resistance), output adjustable via potentiometer
- Protection: Overcurrent, overvoltage, overtemperature, short circuit, auto recovery
- Ingress Protection: IP67/IP65 rated for outdoor/indoor applications
- Operating Temperature: -40°C to +80°C
- Maximum Case Temperature: +80°C
- Lifetime: >62,000 hours at Ta ≤75°C
- Certifications: UL, CSA, EN/AS/NZS, CE, GB19510.14
- Dimensions: 220mm x 68mm x 38.8mm
- Weight: Approximately 412 grams
Buy the MEAN WELL HLG120H – Reliable LED Driver for Outdoor Lighting Applications
Order the MEAN WELL HLG120H LED driver online today and enjoy high efficiency, versatile dimming options, and IP67/IP65 ratings suitable for outdoor and indoor LED lighting projects. With an operating lifetime exceeding 62,000 hours and a 7-year warranty, this driver ensures long-lasting, reliable performance in various applications such as street lighting, high bays, and hazardous locations. Fast delivery and easy online purchase make it convenient to enhance your lighting system with trusted quality.
Buy MEAN WELL HLG120H now and experience unmatched reliability and performance for outdoor LED lighting solutions.
Frequently Asked Questions
Where can I buy MEAN WELL HLG120H24?
You can click on the BUY or RFQ button to purchase HLG120H24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG120H24?
You can download the HLG120H24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG120H24?
MEAN WELL
