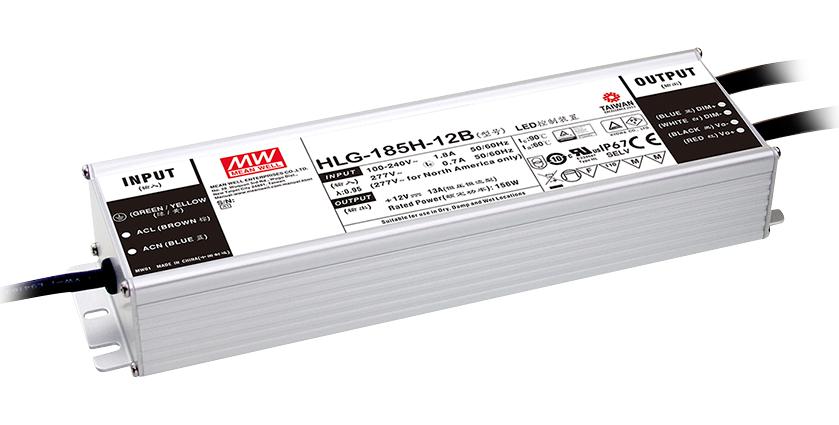

MEAN WELL HLG185H12B High Power LED Driver
The HLG-185H series is a highly efficient 185W AC/DC LED driver supporting dual mode operation of constant voltage and constant current. Suitable for indoor and outdoor lighting, it features an IP67/IP65 rating, metal housing, and a operating temperature range from -40°C to +90°C. The series offers multiple models with adjustable voltage and dimming options including 3-in-1 dimming, timer dimming, and adjustable current, making it versatile for street lighting, high-bay, parking, and greenhouse applications. Its lifetime exceeds 62,000 hours with high reliability and safety certifications.
MEAN WELL HLG185H12B High Power LED Driver Specifications:
- Rated Power: 185W
- Input Voltage: 90 ~ 305VAC
- Output Voltage Range: 12V to 54V
- Rated Current: 13A at 12V, 11.54A at 15V, 9.3A at 20V, 7.8A at 24V, 6.24A at 30V, 5.24A at 36V, 4.4A at 42V, 3.94A at 48V, 3.45A at 54V
- Ripple & Noise: Max. 200mVp-p
- Efficiency: Up to 94%
- Operating Temperature: -40°C to +90°C
- Ingress Protection: IP67/IP65 ratings depending on model
- Lifetime: >62,000 hours
- Dimensions: 228mm (L) x 68mm (W) x 38.8mm (H)
- Protection: Over current, over voltage, over temperature, short circuit
- Dimming: 3-in-1 (1-10VDC, PWM, resistance), timer, and adjustable current
- Certifications: UL, CSA, EN/AS/NZS 61347-1, 61347-2-13
- Input Power Factor: Up to 0.98
- Total Harmonic Distortion: Less than 20%
- MTBF: 192,200 hours
- Material: Metal housing, waterproof connectors available
Buy the Mean Well HLG185H12B Series High Power LED Driver: Reliable Industrial Lighting Power Supply
Enhance your lighting projects with the reliable 185W LED driver designed for both indoor and outdoor use. Featuring dual mode constant voltage and current, adjustable output, advanced dimming options, and IP67/IP65 ratings, it provides flexible installation options and long-term performance. Whether for street lighting, high bays, parking, or greenhouse environments, this driver ensures high efficiency, minimal noise, and durability with over 62,000 hours lifetime. Purchase online now to enjoy seamless integration and professional-grade lighting solutions.
Get Mean Well 185W today—built for precision and long-lasting durability in demanding lighting environments.
Frequently Asked Questions
Where can I buy MEAN WELL HLG185H12B?
You can click on the BUY or RFQ button to purchase HLG185H12B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG185H12B?
You can download the HLG185H12B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG185H12B?
MEAN WELL
