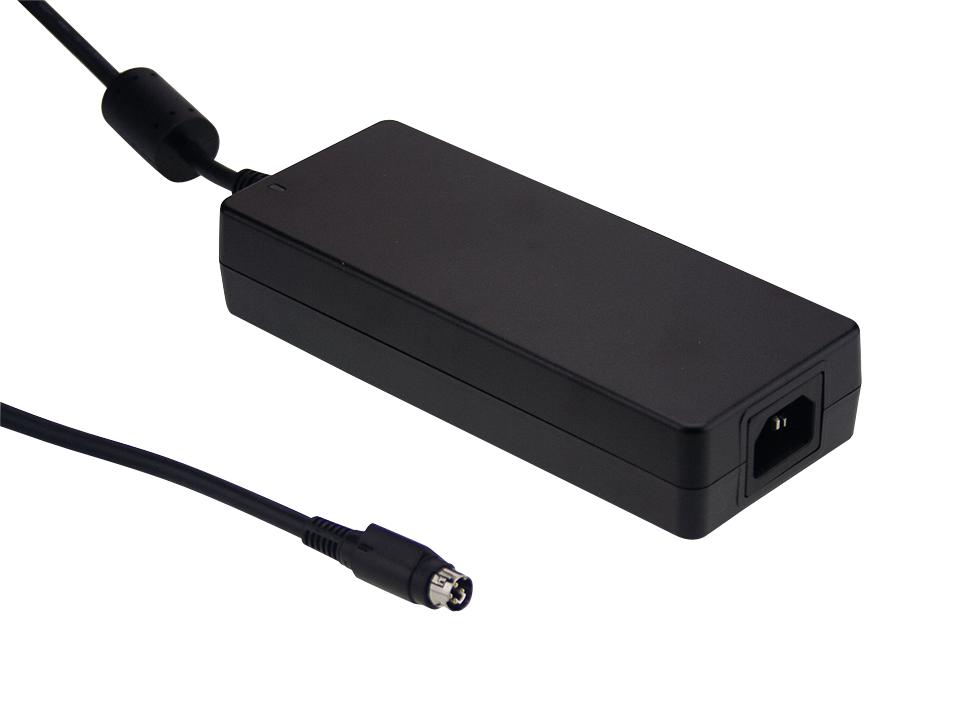

MEAN WELL GSM160A12R7B Medical Power Adapter
GSM160A is a highly reliable, 160W medical power adaptor suited for various medical devices including portable hemodialysis machines, clinical workstations, and breath machines. It features universal AC input (80V-264VAC), excellent efficiency up to 94%, ultra low leakage current (<100uA), and complies with international safety standards (2*MOPP). Its fanless, compact design withstands temperatures from -30°C to +70°C, providing stable, safe power with protections against short circuits, overloads, and overvoltage. Approved with medical safety certificates, GSM160A is an energy-efficient, durable choice for critical medical applications.
MEAN WELL GSM160A12R7B Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Power: 138W to 160W depending on model
- Output Voltage: 12V, 15V, 20V, 24V, 48V
- Rated Current: 11.54A for 12V, 9.64A for 15V, 8A for 20V, 6.67A for 24V, 3.34A for 48V
- Ripple & Noise (max.): 80mVp-p to 240mVp-p
- Efficiency: Up to 94%
- Leakage Current: <100uA
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Operating Temperature: -30°C to +70°C
- Dimensions: 175mm x 72mm x 35mm
- Safety Standards: UL 60601-1, TUV EN60601-1, 2xMOPP compliance
- Isolation Level: Primary-Secondary 2xMOPP
- MTBF: 290,300 hours (MIL-HDBK-217F, 25°C)
Buy the Buy MW GSM160A Part Number GSM160A12R7B Online
Purchase the MW GSM160A medical power adapter online today to ensure reliable and safe power delivery for critical healthcare devices. Designed with high efficiency up to 94%, ultra low leakage current, and full compliance with international safety standards, this 160W adapator is suitable for portable dialysis, clinical monitors, and breath machines. Its fanless design offers durability in harsh environments (-30°C to +70°C), while protections against short circuits, overvoltage, and over temperature ensure safety and longevity. Easy to install, energy-efficient, and supported by a 3-year warranty, order now for dependable performance.
Get MW GSM160A today—built for medical safety and high efficiency, perfect for reliable healthcare power requirements.
