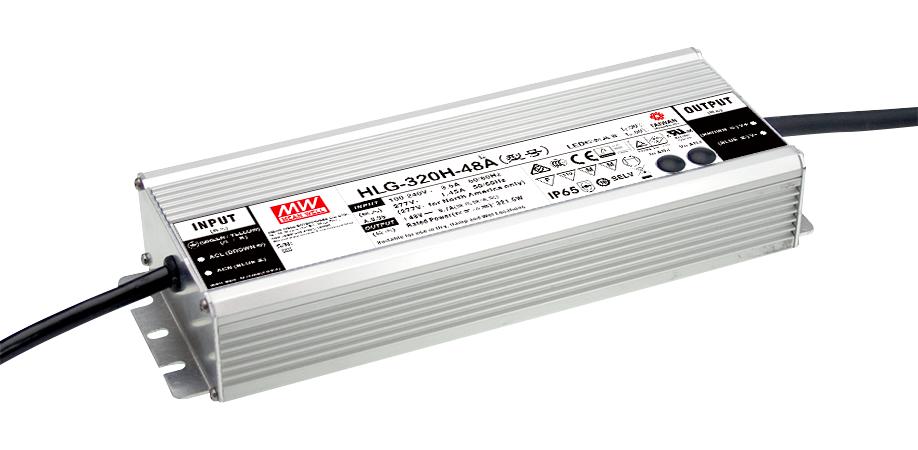

MEAN WELL HLG320H30A LED Driver
The HLG-320H series is a 320W AC/DC LED driver designed for versatile lighting applications, including street, high-bay, greenhouse, and hazardous locations. It features dual mode output, adjustable voltage, and various dimming options such as 3-in-1 dimming and remote control. With high efficiency up to 94%, robust metal housing, and ingress protection levels IP67/IP65, it operates reliably from -40°C to +90°C and offers a 7-year warranty. Suitable for indoor and outdoor uses, this driver provides excellent performance and flexibility for professional LED lighting systems.
MEAN WELL HLG320H30A LED Driver Specifications:
- Model: HLG-320H series
- Power: 320W
- Input Voltage: 90~305VAC
- Output Voltage Range: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Current: 22A at 12V, 19A at 15V, 13.34A at 20V, 10.7A at 24V, 8.9A at 30V, 7.65A at 36V, 6.7A at 42V, 5.95A at 48V, 5.95A at 54V
- Efficiency: Up to 94%
- Ripple & Noise: Max 150-350mVp-p depending on model
- Working Temperature: -40°C to +90°C
- Ingress Protection: IP67/IP65 (depending on type)
- Dimming Options: 3-in-1 dimming (1-10V, PWM, resistance)
- Certifications: UL Listed, CSA Certified, EN55015, EN61000-3-2/3/4/5/6, GB17743, GB17625.1
- Dimensions: 252mm x 43.8mm x 90mm
- MTBF: >62,000 hours
- Lifetime: >62,000 hours at Tcase ≤75°C
- Case Material: Metal housing
Buy the Taiwan Series LED Driver: 320W Constant Voltage + Current Model HLG320H30A
Enhance your LED lighting setup with the Taiwan Series 320W constant voltage and current driver. Featuring high efficiency up to 94%, robust IP67/IP65 ratings, and versatile dimming options, this driver is perfect for both indoor and outdoor environments. Its wide input voltage range and operating temperature from -40°C to +90°C ensure durability and dependable operation in demanding conditions. With a lifetime exceeding 62,000 hours and a 7-year warranty, the HLG-320H series guarantees excellent performance and long-term value for professional lighting installations.
Buy Taiwan Series LED Driver HLG320H30A now and experience unmatched reliability and performance in your lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL HLG320H30A?
You can click on the BUY or RFQ button to purchase HLG320H30A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG320H30A?
You can download the HLG320H30A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG320H30A?
MEAN WELL
