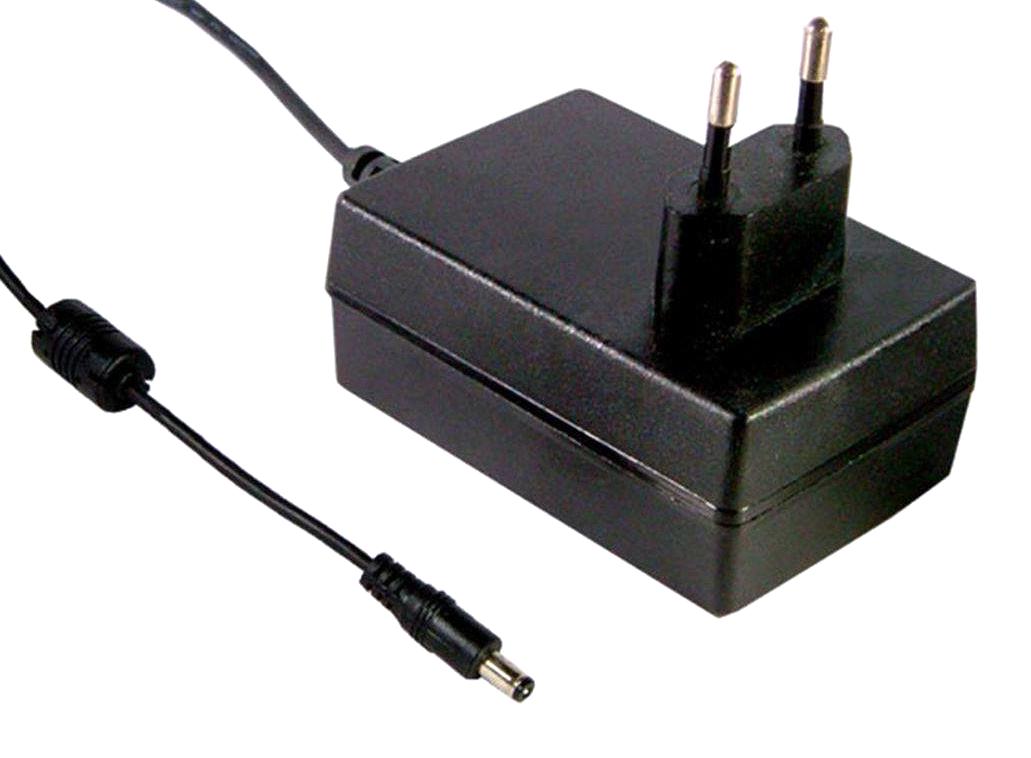

MEAN WELL GST18E28P1J industrial power supply
The GST18E28P1J is a highly efficient 18W industrial power supply designed for reliable operation in diverse environments. This class II wall-mounted adaptor features a universal AC input from 85VAC to 264VAC, and delivers a steady 28V DC output at up to 0.75A. Its safety and protection features include short circuit, overcurrent, and overvoltage protections. The unit operates from -30°C to +70°C, has a compact dimensions of 79x54x33mm, and complies with global safety and EMC standards. Its flame-retardant plastic case ensures safety while offering double insulation, making it ideal for industrial, automation, and control applications requiring high reliability and energy efficiency.
MEAN WELL GST18E28P1J industrial power supply Specifications:
- Input Voltage Range: 85~264VAC, 47~63Hz
- Output Voltage: 28V DC
- Rated Power: 18W
- Rated Current: 0.75A
- Ripple & Noise: 150mVp-p (max.)
- Voltage Tolerance: +20%
- Line Regulation: +1.0%
- Load Regulation: +20%
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 79mm x 54mm x 33mm
- Efficiency: Up to 89%
- Protection: Short circuit, Overload, Over voltage
- Safety Standards: TUV EN60950-1, EAC, IEC60950-1
- Compliance: EU ErP, CoC Level VI
- Enclosure: Fully enclosed plastic case, flame-retardant
- Insulation Resistance: 100 MΩ / 500VDC
- MTBF: 500,000 hours
Buy the Industrial Power Supply Series GST18E 28V: GST18E28P1J
Upgrade your industrial electrical systems with the high reliability and energy-efficient GST18E28P1J power adaptor. Designed for demanding environments, this 18W unit features a universal input, 28V output, and operates across a broad temperature range from -30°C to +70°C. It offers premium safety features including short circuit, overvoltage, and overload protections, all housed in a compact, flame-retardant plastic enclosure. Certified to international safety standards and compliant with EU ErP and CoC Level VI, this power supply ensures energy savings and operational stability for automation, control, and industrial automation applications. Buy online today to secure dependable power for your critical projects.
Order your MEAN WELL Series GST18E28P1J reliable industrial power supply today and ensure your projects operate with maximum efficiency and safety.
Frequently Asked Questions
Where can I buy MEAN WELL GST18E28P1J?
You can click on the BUY or RFQ button to purchase GST18E28P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST18E28P1J?
You can download the GST18E28P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST18E28P1J?
MEAN WELL
