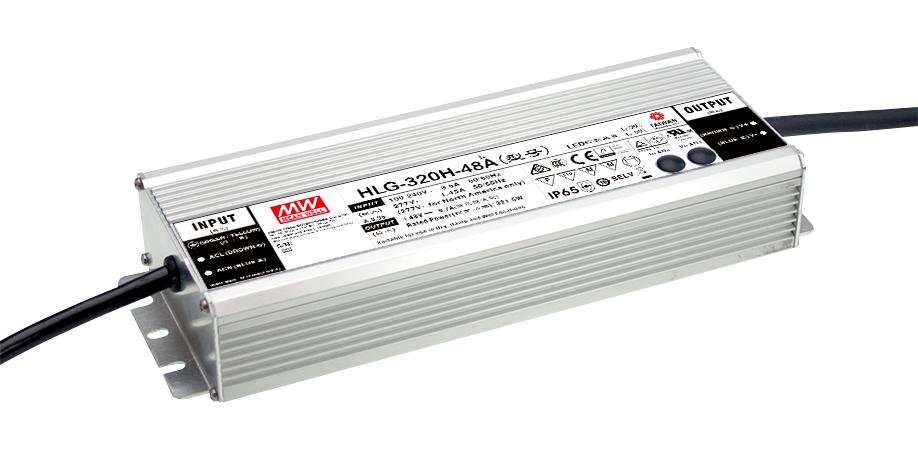

MEAN WELL HLG320H42A LED driver
The HLG-320H series is a versatile 320W AC/DC LED driver with dual constant voltage and current modes, suitable for indoor and outdoor applications. Featuring high efficiency up to 94%, it supports models with various rated voltages from 12V to 54V and operates over a wide input voltage range of 90 to 305VAC. Designed with a metal housing and IP67/IP65 ratings, it withstands harsh environments and temperature extremes from -40°C to +90°C. Equipped with dimming options including 3-in-1 functions and active PFC, this driver is ideal for street lighting, high-bay, greenhouse, and hazardous location lighting.
MEAN WELL HLG320H42A LED driver Specifications:
- Rated Power: 320W
- Input Voltage Range: 90 ~ 305VAC
- Output Voltage: 12V to 54V models
- Output Power: 264W to 321.6W depending on model
- Efficiency: Up to 94%
- Response time: 2500ms start-up, hold-up 15ms
- Operating Temperature: -40°C to +90°C
- Ingress Protection: IP67/IP65
- Dimensions: 252mm x 90mm x 43.8mm
- Ripple & Noise: Max 350mVp-p
- Power Factor: 0.98 at 115VAC, 0.95 at 230VAC
- Lifetime: >62,000 hours
- Dimming Modes: 3-in-1 (1-10V, PWM, resistance)
- Mechanical Housing: Metal, compact design
- Certifications: UL, EN, CSA, CE, EAC
- Protection: Short circuit, over current, over temperature
- Adjustable Voltage & Current: Via built-in potentiometer
- Applications: Street lighting, high-bay, greenhouse, hazardous locations, outdoor and indoor lighting
Buy the Buy TAIWAI HLG 320H Series Part Number HLG320H42A Online
Get your TAIWAI HLG-320H series LED driver today online for reliable performance in diverse lighting applications. With high efficiency up to 94%, IP67/IP65 ratings, and multiple dimming options, this 320W driver ensures stable operation in harsh environments from -40°C to +90°C. Designed for both indoor and outdoor use, it supports models from 12V to 54V, making it ideal for street, high-bay, greenhouse, and hazardous locations. Purchase now to boost your project’s effectiveness with quality assured LED power supply.
Order your TAIWAI SeriesH SeriesH Series HLG-320H42A today and equip your lighting projects with dependable, high-efficiency LED drivers for outdoor and industrial use.
Frequently Asked Questions
Where can I buy MEAN WELL HLG320H42A?
You can click on the BUY or RFQ button to purchase HLG320H42A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG320H42A?
You can download the HLG320H42A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG320H42A?
MEAN WELL
