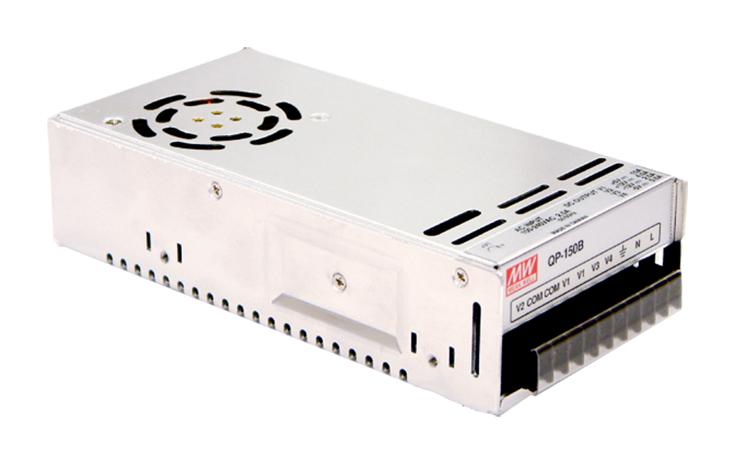

MEAN WELL QP150F Quad Output Power Supply
The MEAN WELL QP-150F is a versatile 150W quad output power supply designed for a wide range of industrial applications. It incorporates a built-in active PFC function for improved power factor, and a universal AC input for global compatibility. Key features include multiple protections against short circuits, overloads, and over voltages, ensuring reliable operation. The unit is cooled by a built-in DC fan and offers selectable polarity for CH1. Its compact design and robust construction make it a suitable choice for demanding environments.
MEAN WELL QP150F Quad Output Power Supply Specifications:
- Universal AC input: Full range
- PFC: Built-in active PFC function, PF>0.95
- Protections: Short circuit / Over load / Over voltage
- Cooling: Forced air cooling by built-in DC fan
- Switching Frequency: Fixed switching frequency at 100KHz
- Warranty: 3 years
- DC Voltage: 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Rated Power (max.): 150W
- Output: Multiple outputs (see model variations)
- Voltage Adj. Range: CH1:5.75 ~ 6.75V, CH2:3.8 ~ 4.4V (varies by model)
- Line Regulation: 74%
- Load Regulation: 75%
- Setup, Rise Time: 2.5A/115VAC, 1.2A/230VAC
- Hold Up Time (Typ.): 40A/230V
- Leakage Current: ≦ 3.5mA / 240VAC
- Overload: 105 ~ 150% rated output power
- Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
- Working Temp.: -10 ~ +60℃ (Refer to 'Derating Curve')
- Working Humidity: 20 ~ 90% RH non-condensing
- Storage Temp., Humidity: -20 ~ +85℃, 10 ~ 95% RH non-condensing
- Vibration: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
- MTBF: 141.5K hrs min. (MIL-HDBK-217F (25℃))
- Dimension: 199*99*50mm (L*W*H)
- Weight: 0.93Kg
- Packing: 20pcs/19.6Kg/1.28CUFT
- Ripple & Noise (max.): 100mVp-p (varies by model)
- Voltage Tolerance: ±3.0% (varies by model)
- Safety Standards: UL60950-1, TUV EN60950-1 EAC TP TC 004 approved
- EMC Compliance: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3,EAC TP TC 020
