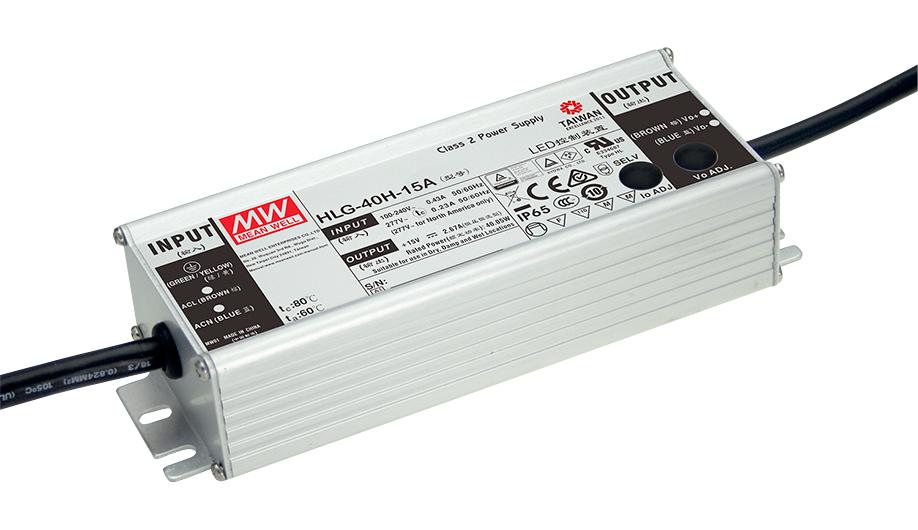

MEAN WELL HLG40H24 LED Driver
The MEAN WELL HLG-40H series is a 40W LED driver offering both constant voltage and constant current modes, suitable for indoor and outdoor LED lighting applications such as streetlights, high bays, and greenhouse lighting. It features high efficiency up to 89.5%, a fanless design, and an IP67/IP65 rating, operating effectively from -40°C to +80°C. The driver includes multiple dimming options, adjustable output voltage via potentiometer, and protects against overcurrent, overvoltage, and temperature fluctuations, ensuring durability and extended lifespan of LED systems.
MEAN WELL HLG40H24 LED Driver Specifications:
- Input Voltage: 90~305VAC, 127~431VDC
- Output Power: 40W
- DC Voltage Range: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Current: 3.33A at 12V, 2.67A at 15V, 2A at 20V, 1.67A at 24V, 1.34A at 30V, 1.13A at 36V, 0.96A at 42V, 0.84A at 48V, 0.75A at 54V
- Efficiency: Up to 89.5%
- Ripple & Noise: Max 150-300mVp-p depending on model
- Protection: Over current, over voltage, temperature, short circuit
- Operating Temp.: -40°C to +80°C
- Ingress Protection: IP67/IP65 rated for indoor/outdoor use
- Dimensions: 171 mm × 61.5 mm × 36.8 mm
- Lifetime: >62,000 hours
- Dimming Methods: 1~10VDC, 10V PWM, resistance, and optional timer dimming
- Standards: UL, EN, CSA, approved for various safety and EMC standards
- Weight: Approximately 0.73 kg per unit
Buy the Buy MEAN WELL LED Driver Part Number HLG40H24 Online
Enhance your LED lighting system with the MEAN WELL HLG-40H series, a 40W dual mode driver designed for optimal performance in harsh environments. Featuring adjustable voltage, high efficiency up to 89.5%, and robust IP67/IP65 ratings, this driver is perfect for streetlights, high bays, and greenhouse applications. It offers multiple dimming options, comprehensive protection features, and a lifespan exceeding 62,000 hours. Purchase online now to ensure reliable power and long-lasting service for your LED installations.
Buy MEAN WELL HLG-40H series LED driver now and experience unmatched reliability and performance for your indoor and outdoor lighting needs.
Frequently Asked Questions
Where can I buy MEAN WELL HLG40H24?
You can click on the BUY or RFQ button to purchase HLG40H24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG40H24?
You can download the HLG40H24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG40H24?
MEAN WELL
