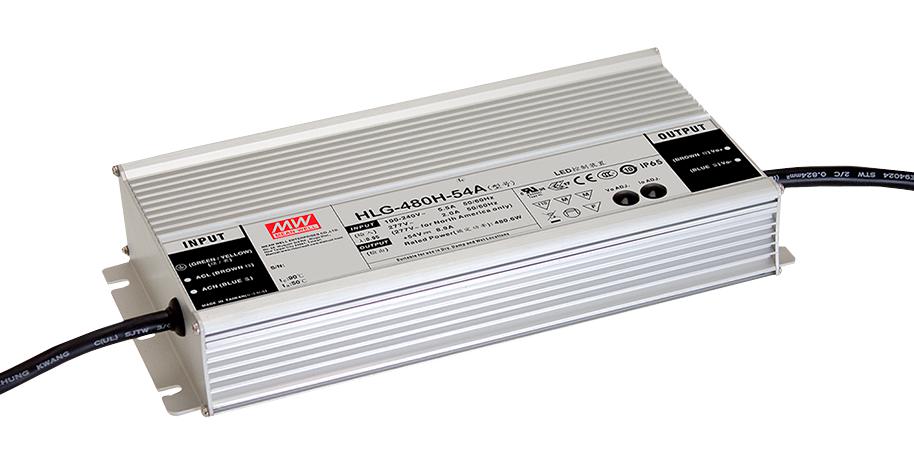

MEAN WELL HLG480H24 480W LED Driver
The HLG-480H series is a robust 480W AC/DC LED driver designed for versatility in indoor and outdoor lighting applications. Featuring dual modes of constant voltage and current output, it operates efficiently at up to 95.5% with a fanless design, ensuring reliable performance in a temperature range of -40°C to +90°C. Its metal housing with IP67/IP65 ingress protection makes it suitable for harsh environments, including street, greenhouse, stadium, mining, and hazardous locations. The series offers adjustable output voltage via built-in potentiometer, various dimming functions, and a lifespan exceeding 62,000 hours, backed by a 7-year warranty, providing flexible, long-term LED lighting solutions.
MEAN WELL HLG480H24 480W LED Driver Specifications:
- Power: 480W
- Input Voltage: 90~305VAC
- Output Voltage Range: 24V to 54V
- Rated Current: 20A at 24V, 16A at 30V, 13.3A at 36V, etc.
- Efficiency: Up to 95.5%
- Ripple & Noise: 200-350mVp-p
- Operating Temperature: -40°C to +90°C
- Ingress Protection: IP67/IP65
- Lifespan: >62,000 hours
- Dimensions: 262mm x 125mm x 43.8mm
- Max Case Temperature: 90°C
- Certifications: UL, CSA, ENEC, CE, EAC
- Dimming: 3-in-1 dimming (0-10V, PWM, resistance), smart timer options
- Additional Features: Built-in active PFC, multiple function options, suitable for Class I and Class II systems
Buy the Buy MEAN WELL HLG Series 480W LED Driver Part Number HLG480H24 Online
Enhance your LED lighting system with the MEAN WELL 480W LED driver from the HLG series. Designed for durability and performance, it offers dual constant voltage and current modes, high efficiency up to 95.5%, and multiple dimming options. Its IP67/IP65 rated metal housing makes it suitable for outdoor environments including street, landscape, greenhouse, stadium, and hazardous locations. With a lifespan of over 62,000 hours and a 7-year warranty, this driver ensures long-term, reliable operation for various lighting projects.
Buy MEAN WELL HLG-480H series now and experience unmatched reliability, high efficiency, and flexible dimming for indoor and outdoor LED lighting applications.
Frequently Asked Questions
Where can I buy MEAN WELL HLG480H24?
You can click on the BUY or RFQ button to purchase HLG480H24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG480H24?
You can download the HLG480H24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG480H24?
MEAN WELL
