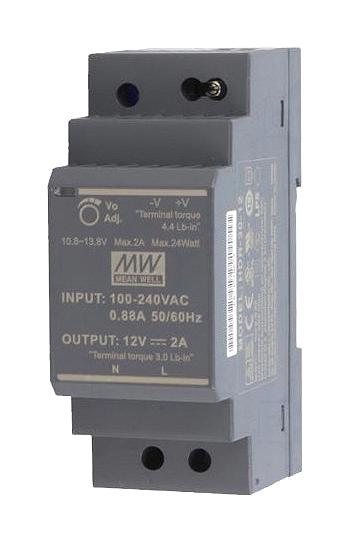

MEAN WELL HDR3015 DIN Rail Power Supply
HDR-30 is an economical 30W ultra-slim DIN rail power supply series designed for space-saving installations in industrial and household automation systems. It features a width of only 35mm (2SU) and supports full-range AC input from 85V to 264VAC, with options up to 277VAC. The power supply offers adjustable output voltages from 45V to 55.2V depending on model, with high efficiency up to 90% and robust protection functions including overload, short circuit, and overvoltage protection. Its plastic housing ensures safety, while the cooling by free air convection allows operation from -30°C to +70°C. The series complies with comprehensive safety and EMC standards and is compatible with TS-35/7.5 or 15 DIN rail mounting, making it suitable for industrial, automation, and control panel applications.
MEAN WELL HDR3015 DIN Rail Power Supply Specifications:
- Model: HDR-30 series with models HDR-30-5, HDR-30-12, HDR-30-15, HDR-30-24, HDR-30-48
- Input Voltage Range: 85~264VAC (277VAC available), 120~370VDC (390VDC available)
- Frequency Range: 47~63Hz
- Rated Power: 15W to 36W depending on model
- Output Voltage: 5V, 12V, 15V, 24V, 48V, adjustable within specified ranges
- Rated Current: 0.75A to 3A depending on model
- Ripple & Noise: Max. 80mVp-p to 240mVp-p depending on model
- Efficiency: Up to 90%
- Protection: Overload, overvoltage, short circuit; constant current limiting
- Working Temperature: -30°C to +70°C
- Working Humidity: 20% to 90% RH non-condensing
- Storage Temperature: -40°C to +85°C, 10% to 95% RH
- Dimensions: 58.4mm(W) x 90mm(H) x 54.5mm(D)
- Mounting: TS-35/7.5 or TS-35/15 DIN rail compatible
- Certifications: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1
Buy the Meanwell Series HDR Power Supply: 30W Ultra Slim Step Shape DIN Rail Part Number HDR3015
Purchase the reliable and efficient DIN rail power supply today. Designed for industrial, automation, and household control systems, this 30W series offers adjustable output voltages, high efficiency up to 90%, and protection against overload, overvoltage, and short circuits. Its compact 35mm width allows easy installation on TS-35/7.5 or 15 rails. Certified to meet safety and EMC standards, it ensures safe operation in temperatures from -30°C to +70°C. Perfect for control panels, factory automation, and building automation—order now for quality, durability, and peace of mind in your projects.
Get Meanwell HDR3015 today—built for precision and long-lasting durability in industrial automation and control applications.
