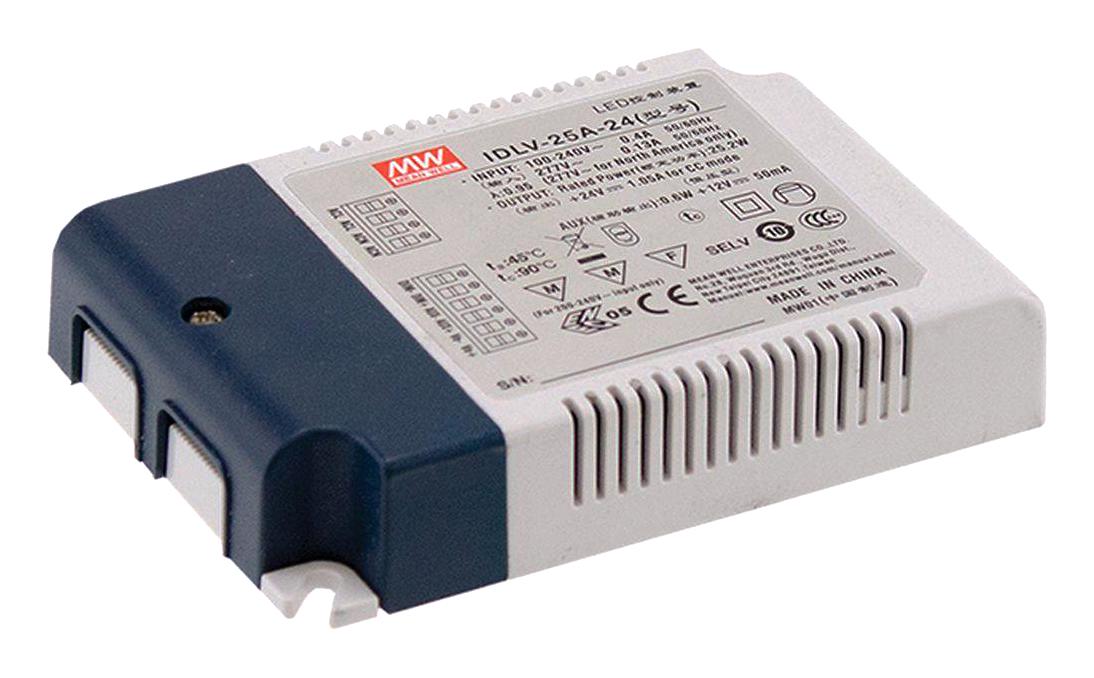

MEAN WELL IDLV25A36 LED Driver
The IDLV-25 series is a 25W LED driver with a constant voltage PWM output designed for indoor decorative and architectural lighting. Operating from 90 to 295VAC, it offers models with rated voltages from 12V to 60V, ensuring high efficiency up to 84% and a fanless, durable construction suitable for temperatures from -20°C to +90°C. Features include 2-in-1 dimming, auxiliary DC output, active PFC, and built-in protections, making it ideal for custom LED lighting systems and flexible installation in various environments.
MEAN WELL IDLV25A36 LED Driver Specifications:
- DC Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Power: 21.6W to 25.2W
- Efficiency: Up to 84%
- Dimming Range: 0-100%
- PWM Frequency: 1KHz
- Input Voltage: 90~295VAC
- Output Current: 1.84A (12V), 1.05A (24V), 0.7A (36V), 0.52A (48V), 0.42A (60V)
- Dimensions: 110 x 75 x 22mm
- Operating Temperature: -20°C to +90°C
- Protection: Over-current, short circuit, over-temperature
- Certifications: EN55015, EN61000-3-2, EN61000-4-2,3,4,5,6,8,11
- Leakage Current: <0.75mA at 277VAC
- Weight: 0.2kg
Buy the Mean Well Series LED Driver: PWM 25W: IDLV25A36
Experience superior LED lighting with the Mean Well IDLV25A36 driver, offering 25W PWM output, high efficiency up to 84%, and wide input voltage range of 90 to 295VAC. Its durable, fanless design allows operation from -20°C to +90°C, making it ideal for indoor decorative and architectural lighting. Features include 2-in-1 dimming, auxiliary DC output, active PFC, and comprehensive protections. Easy to install and reliable, this constant voltage LED driver ensures optimal performance for versatile LED lighting systems, suitable for commercial or residential use.
Get Mean Well IDLV25A36 today—built for precision and long-lasting durability in LED lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV25A36?
You can click on the BUY or RFQ button to purchase IDLV25A36 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV25A36?
You can download the IDLV25A36 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV25A36?
MEAN WELL
