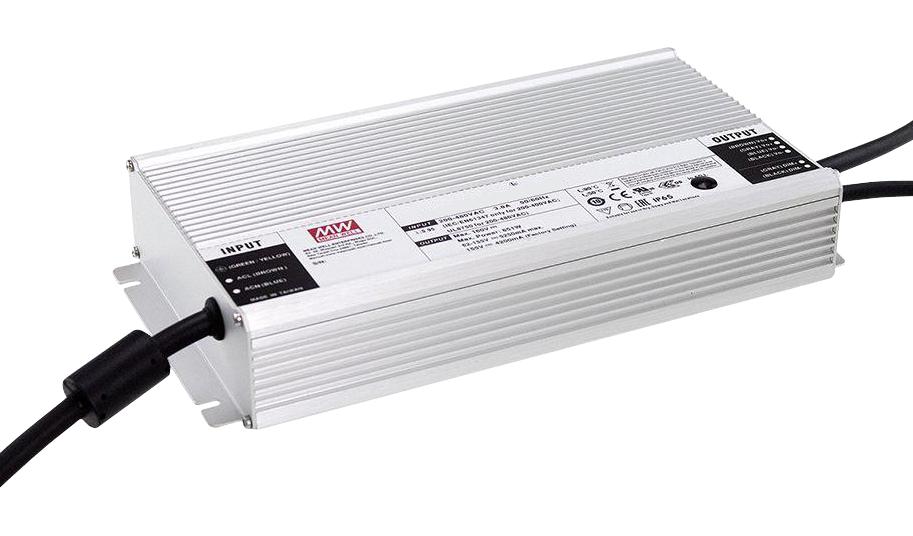

MEAN WELL HVGC650HAB LED Driver
The HVGC-650 series is a 650W LED driver designed for indoor and outdoor applications, including horticulture and stadium lighting. It features constant power mode with selectable output currents from 2800mA to 14000mA, high efficiency up to 95.5%, and an IP67 metal housing suitable for harsh environments. The driver supports wide input voltages from 180 to 528VAC, offers various dimming options including 3-in-1 dimming, smart timer, and DALI control, and operates from -40°C to +85°C with a lifetime exceeding 50,000 hours. It complies with safety and EMC standards, with surge protection up to 8KV/4KV.
MEAN WELL HVGC650HAB LED Driver Specifications:
- Input Voltage: 180~528VAC, 47~63Hz
- Rated Power: 649.6W
- Rated Current: 2800mA, 4200mA, 5600mA, 11200mA
- Output Voltage Range: 240V to 62V depending on model
- Efficiency: Up to 95.5%
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67
- Protection Features: Over Voltage, Over Temperature, Short Circuit, Surge Protection (8KV/4KV)
- Lifespan: >50,000 hours
- Dimming: 3-in-1 dimming (0-10V, PWM, Resistance), Smart timer, DALI optional
- Dimensions: 280mm x 144mm x 48.5mm
- Weight: 3.9kg
- Standards: UL, CSA, EAC, EMC EN55015, EN61000-3-2/3, FCC Part 15
- Construction: Metal housing with robust design for outdoor and indoor use
Buy the Mean Well HVGC-650 U–Reliable LED Driver for Industrial Applications
Experience exceptional performance with the HVGC-650 LED driver, featuring maximum efficiency of 95.5%, IP67 ingress protection, wide input voltage, and multiple dimming options. Perfect for indoor or outdoor applications such as stadiums, horticulture, and industrial lighting, it ensures reliable operation with a lifespan exceeding 50,000 hours. Its robust metal housing withstands harsh environments, and various configurable options make it suitable for diverse lighting systems. Purchase online today to upgrade your lighting setup with this high-quality, durable LED driver.
Buy Mean Well HVGC-650 now and experience unmatched reliability and performance for your industrial and outdoor lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL HVGC650HAB?
You can click on the BUY or RFQ button to purchase HVGC650HAB from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HVGC650HAB?
You can download the HVGC650HAB datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HVGC650HAB?
MEAN WELL
