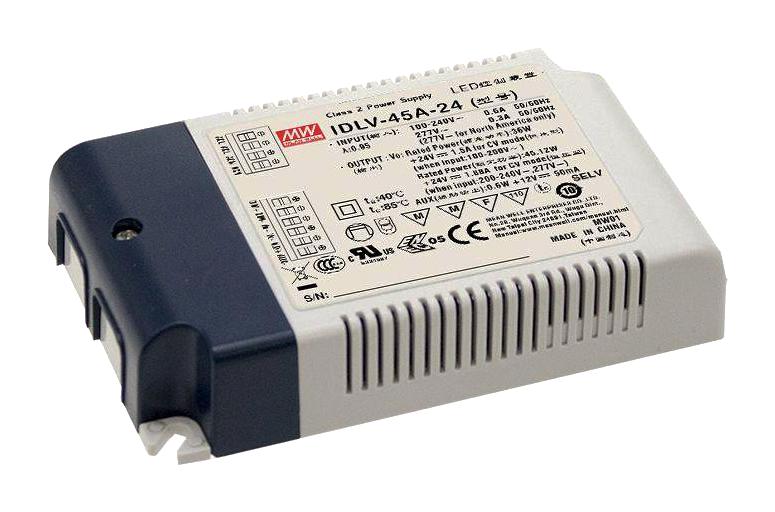

MEAN WELL IDLV45A12 LED Driver
The IDLV-45 series is a 45W LED driver with constant voltage PWM output, operating from 90 to 295VAC. It features models with output voltages between 12V and 60V, up to 90% efficiency, and a fanless design for reliable operation in temperatures from -20°C to +85°C. Equipped with options like 2-in-1 dimming (0-10VDC and 10V PWM), auxiliary DC output, and built-in active PFC, it is ideal for indoor LED lighting, decorative, architectural, and strip lighting applications. The robust design ensures high performance and safety compliance with various EMC and safety standards.
MEAN WELL IDLV45A12 LED Driver Specifications:
- Input Voltage Range: 99~295VAC, 127~417VDC
- Output Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Power: 36W to 45W depending on model
- Rated Current: 3.0A at 12V, down to 0.754A at 60V
- Efficiency: Up to 90%
- PWM Frequency: 1KHz
- Dimming Range: 0~100%
- Output Voltage Tolerance: ±10%
- Dimensions: 120*75*25mm (L*W*H)
- Operating Temperature: -20°C to +85°C
- Protection: Over current, short circuit, and over temperature
- Certifications: EN55015, EN61000-3-2/3, GB17743, GB17625.1
- Fansless design, high reliability with 3-year warranty
- Isolation Voltage: 3.75KVAC (I/P-O/P)
Buy the Mean Well Series LED Power Supply: 45W PWM Output LED Driver
Order the Mean Well IDLV-45 series PWM LED driver online today to ensure high-quality, energy-efficient lighting for your indoor LED installations. Designed with a fanless structure, high efficiency up to 90%, and robust safety features, this 45W solution offers flexible dimming options including 2-in-1 dimming (0-10VDC and PWM). Its reliable operation from -20°C to +85°C makes it ideal for commercial, decorative, and architectural lighting. Convenient online purchase guarantees prompt delivery and technical support for your projects.
Buy Mean Well IDLV-45 series PWM LED driver now and experience unmatched reliability and performance for your indoor lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV45A12?
You can click on the BUY or RFQ button to purchase IDLV45A12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV45A12?
You can download the IDLV45A12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV45A12?
MEAN WELL
