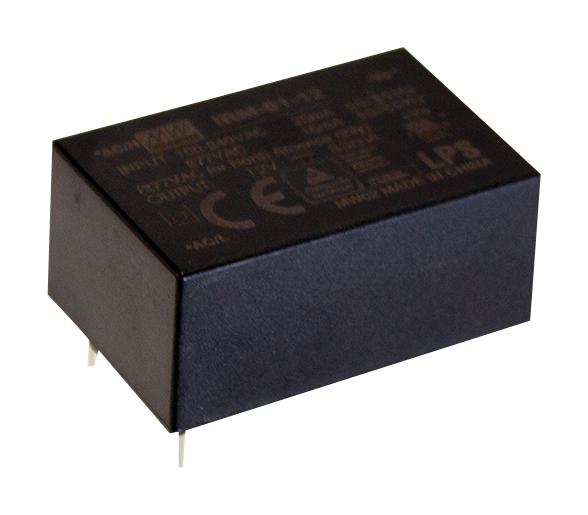

MEAN WELL IRM0112 Miniature Power Supply Module
IRM-01 is a compact 1W AC-DC power supply module designed for industrial and electronic applications. With a universal input range of 85~305VAC, it features a phenolic case, fully potted silicone for enhanced heat dissipation, dust and moisture resistance, and anti-vibration capability up to 5G. It offers high efficiency up to 77%, low no-load power consumption below 0.075W, and complies with EN55022 Class B EMI standards. Suitable for PCB mounting and SMD style, it supports various voltages, protections, and operating temperatures ranging from -30°C to +85°C, making it reliable for industrial automation and electronic equipment.
MEAN WELL IRM0112 Miniature Power Supply Module Specifications:
- Input Voltage Range: 85~305VAC
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V
- Rated Power: 1W
- Output Current: 300mA (3.3V), 200mA (5V), 111mA (12V), 83mA (15V), 42mA (24V)
- Ripple & Noise: 150mVp-p (3.3V, 5V, 9V, 12V), 200mVp-p (15V, 24V)
- Voltage Tolerance: ±2.5%
- Line & Load Regulation: 0.5%
- Efficiency: up to 77%
- No Load Power Consumption: <0.075W
- Operating Temperature: -30°C to +85°C
- Humidity: 20% - 90% RH non-condensing
- Vibration Resistance: 5G, 10-500Hz
- Certifications: UL60950-1, TUV EN60950-1, optional IEC60601-1
- Isolation Voltage: 3KVAC (U/P-O/P)
- Dimensions: PCB Mounting: 33.7*22.2*15mm; SMD Style: 33.7*22.2*46mm
- Environmental: Dust and moisture resistant, anti-vibration, heat dissipation via silicone potting
Buy the Mean Well Series 1W AC-DC Power Supply: IRM-01-12
Enhance your electronic projects and industrial automation systems with the reliable IRM-01 power supply module. Featuring a universal input of 85~305VAC, this compact device offers high efficiency up to 77%, extremely low no-load power consumption, and robust EMI filtering to meet EN55022 Class B standards. Its fully potted silicone case ensures heat dissipation, moisture resistance, and anti-vibration capabilities up to 5G. Ideal for PCB and SMD mounting, it supports voltages from 3.3V to 24V, operates reliably from -30°C to +85°C, and comes with a 3-year warranty. Order online today for superior performance and ease of integration.
Buy Mean Well IRM-01-12 power supply now and experience unmatched reliability and performance in your industrial equipment and electronics.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0112?
You can click on the BUY or RFQ button to purchase IRM0112 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0112?
You can download the IRM0112 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0112?
MEAN WELL
