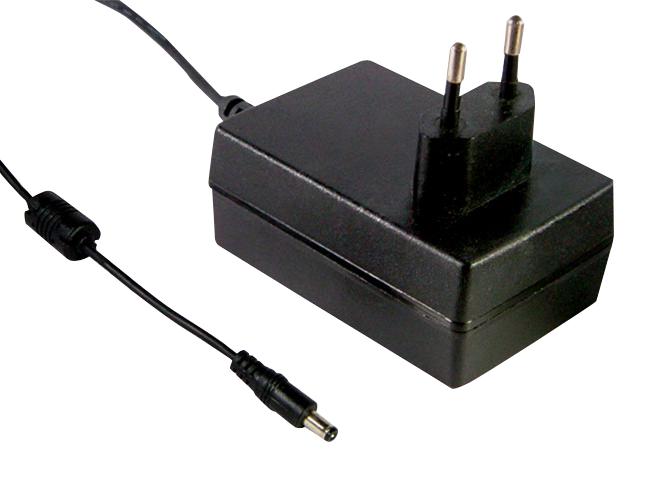

MEAN WELL GSM25E12P1J Medical Power Adaptor
GSM25E is a high-reliability, medical-grade AC-DC power adaptor series delivering 25W of output power. Designed for various portable and medical devices, it offers universal input from 80VAC to 264VAC, with output voltages ranging from 5VDC to 48VDC. The adaptor features high efficiency up to 88%, ultra low leakage current below 50A, and full compliance with international medical safety standards including 2 x MOPP. Its fully enclosed plastic case with double insulation ensures safety, while protections like short circuit, overload, and over voltage safeguard connected equipment. The compact design includes an LED indicator and optional lock-type DC plug, suitable for BF applications, nebulizers, blood pressure, and blood glucose meters.
MEAN WELL GSM25E12P1J Medical Power Adaptor Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 20W to 25W depending on model
- Output Voltages: 5V, 7.5V, 15V, 18V, 24V, 48V
- Rated Current: 4A, 2.93A, 1.664A, 1.384A, 1.044A, 0.524A
- Ripple & Noise: 60mVp-p to 240mVp-p
- Voltage Tolerance: +6.0% to 2.0% depending on model
- Efficiency: Up to 88%
- No Load Power Consumption: <0.1W
- Operating Temperature: Up to +60°C
- Protection: Short circuit, Overload, Over voltage
- Safety Standards: UL, TUV EN60601-1, EN60601-4, IEC60601 certified
- Dimensions: 79*54*33mm (L*W*H)
- Certifications: UL, IEC60601, EMC compliant, medical safety approved
Buy the Buy Medical Power Supply Part Number GSM25E12P1J Online
Purchase the GSM25E12P1J medical power adaptor online today to ensure your medical devices operate safely and efficiently. Featuring high efficiency of up to 88%, ultra low leakage current below 50A, and full compliance with international safety standards, this adaptor is ideal for portable medical equipment such as blood glucose meters, blood pressure monitors, and nebulizers. Its compact, fully enclosed plastic case offers durability and safety, while protections against overload and over voltage guarantee reliability during critical medical procedures. Get yours now for dependable power solution with a 3-year warranty.
Buy the GSM25E12P1J medical adaptor now and experience reliable performance tailored for portable, medical devices with high efficiency and safety features.
Frequently Asked Questions
Where can I buy MEAN WELL GSM25E12P1J?
You can click on the BUY or RFQ button to purchase GSM25E12P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM25E12P1J?
You can download the GSM25E12P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM25E12P1J?
MEAN WELL
