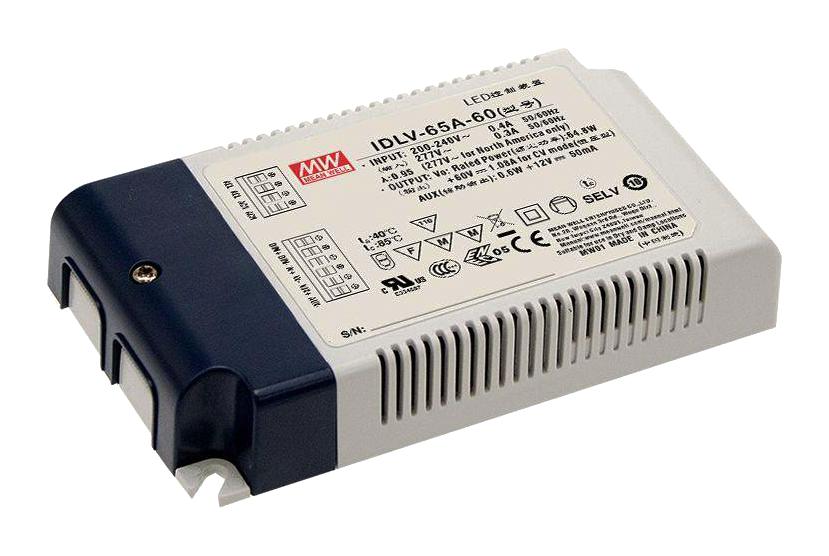

MEAN WELL IDLV65A48 LED Driver
The IDLV-65 series is a 65W constant voltage PWM output LED driver designed for indoor LED lighting and decorative applications. Operating from 180 to 295VAC, it offers models with voltage options from 12V to 60V, featuring high efficiency up to 90% and a fanless design for reliability. Equipped with 2 in 1 dimming (0-10V and PWM) and auxiliary DC options, it ensures flexible installation and operation in temperatures from -20°C to +85°C. Its plastic housing and class II design make it suitable for various LED architectural lighting projects.
MEAN WELL IDLV65A48 LED Driver Specifications:
- Model: IDLV-651-12, IDLV-6524, IDLV-6536, IDLV-6548, IDLV-6560
- AC input voltage: 180~295VAC
- Output voltages: 12V, 24V, 36V, 48V, 60V
- Rated power: 50.4W to 64.8W depending on model
- Rated current: 4.2A, 2.4A, 1.8A, 1.35A, 1.084A respectively
- PWM frequency: 1KHz (+20%)
- Efficiency: up to 90%
- Power factor: up to 0.99
- Operating temperature: -20°C to +85°C
- Dimension: 130*75*25mm
- Protection: over current (105-115%), short circuit, and auto recovery
- No load power consumption: <0.5W (Blank-Type), <1.2W (A-Type)
- Vibration resistance: 10-500Hz, 2G
- Safety: withstanding voltage 3.75KVAC, EMC compliant to EN55015 and EN61000-3-2/3
- MTBF: 398.7K hours
Buy the MeanWell Series D LV-65 65W PWM LED Driver: IDLV65A48
Enhance your LED lighting setup with the reliable and high-performance D LV-65 series LED driver by MeanWell. This 65W PWM driver supports voltages from 12V to 60V, offering up to 90% efficiency, with optional dimming and auxiliary DC output. Its fanless design ensures quiet operation even at high temperatures from -20°C to +85°C. Suitable for indoor applications, it features over current protection, short circuit recovery, and low no-load power consumption. Invest today for durable, energy-efficient LED architecture lighting solutions.
Buy MeanWell D LV-65 65W PWM LED Driver now and experience unmatched reliability and performance in indoor LED lighting and decorative fixtures.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV65A48?
You can click on the BUY or RFQ button to purchase IDLV65A48 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV65A48?
You can download the IDLV65A48 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV65A48?
MEAN WELL
