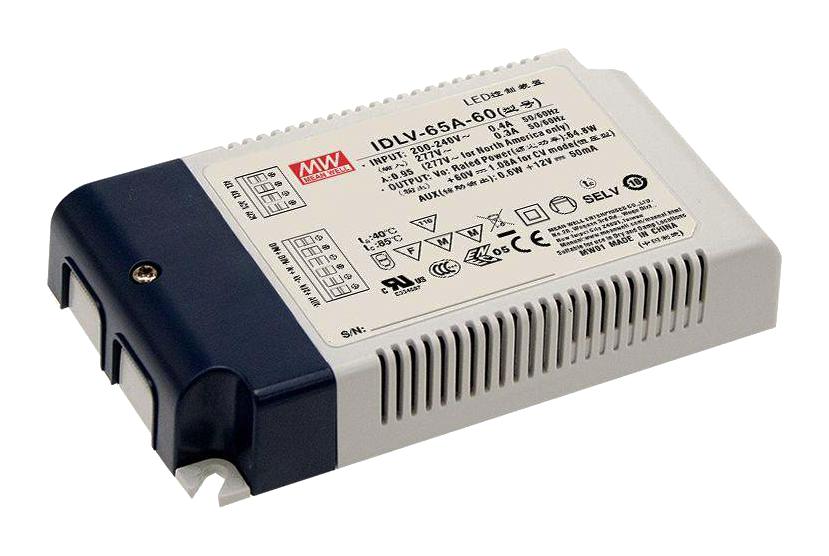

MEAN WELL IDLV65A60 LED Driver
The IDLV-65 series is a 65W LED driver designed for indoor LED lighting and decorative applications. It features a constant voltage PWM output with a frequency of 1KHz, high efficiency up to 90%, and a fanless design for reliable operation from -20°C to +85°C. The driver supports various models with rated voltages from 12V to 60V, offers multiple dimming options including 2 in 1 dimming and auxiliary DC output, and includes built-in active PFC. Ideal for LED architectural lighting and flexible design integration, backed by a 3-year warranty.
MEAN WELL IDLV65A60 LED Driver Specifications:
- Rated power: 50.4W to 64.8W (depending on model)
- Rated voltage: 12V to 60V
- Rated current: 4.2A to 1.084A
- Dimming range: 0% to 100%
- PWM frequency: 1KHz (+20%)
- Efficiency: up to 90%
- Input voltage: 180~295VAC
- Power factor: 87% to 90%
- Protection: Short circuit, over current (105-115%), auto recovery
- Working temperature: -20°C to +85°C
- Dimensions: 130 x 75 x 25 mm
- Leakage current: <0.75mA at 277VAC
- No load power consumption: <0.5W for blank-type
- Certification: CE, UL compliance
- Built-in active PFC, fanless design for silent operation
- Environmental conditions: 20-90% humidity, non-condensing
Buy the Mean Well IDLV-65 U+2013 Reliable LED Driver for Indoor Lighting
Upgrade your lighting system with the reliable Mean Well IDLV-65 series LED driver, offering efficient power delivery, flexible dimming options, and a wide temperature range. Designed for indoor LED decorative, architectural, and signage lighting, this 65W driver features high efficiency up to 90%, low no-load power consumption, and an eco-friendly fanless design. Easy to install with multiple model options supporting voltages from 12V to 60V, backed by a 3-year warranty. Purchase online now for seamless integration and professional-grade LED lighting solutions.
Order your Mean Well IDLV-65 series 65W PWM LED driver today and enhance your indoor lighting projects with dependable performance and flexible dimming options.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV65A60?
You can click on the BUY or RFQ button to purchase IDLV65A60 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV65A60?
You can download the IDLV65A60 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV65A60?
MEAN WELL
