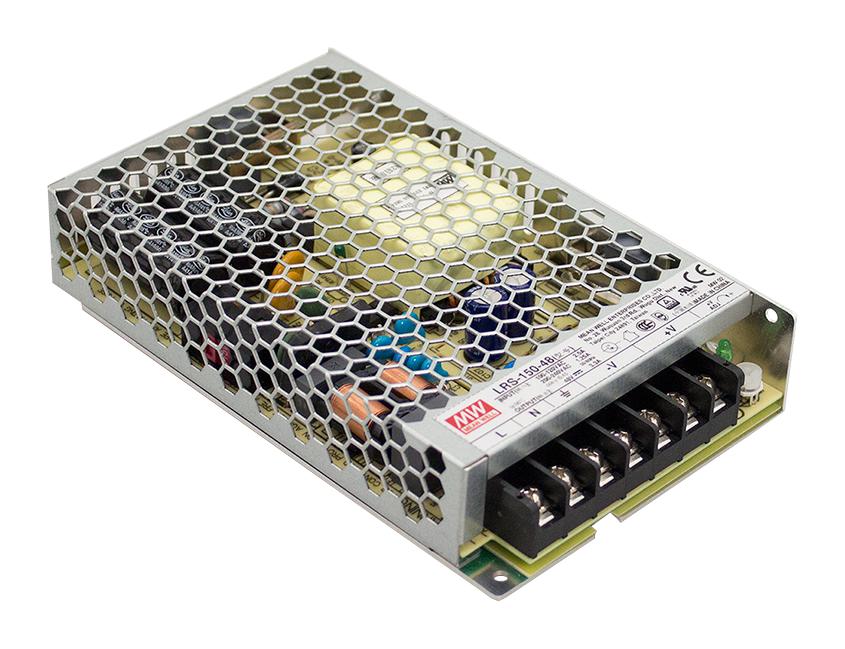

MEAN WELL LRS15048 Power Supply
The LRS-150 series is a compact, 150W single-output power supply designed for industrial applications with a low profile of 30mm. It features selectable input voltages of 115VAC or 230VAC via switch, high efficiency up to 90%, and operates from -30°C to 70°C without fan cooling. The device includes comprehensive protections such as overcurrent, overvoltage, temperature, and short circuit, along with a sturdy metallic mesh case for enhanced heat dissipation. It meets international safety standards like UL, TUV, IEC, and GB certifications, making it ideal for industrial automation, control systems, and household appliances demanding reliable, energy-efficient power solutions.
MEAN WELL LRS15048 Power Supply Specifications:
- Output Power: 150W
- Output Voltage Options: 12V, 15V, 24V, 36V, 48V
- Input Voltage Range: 85V-132VAC / 170V-264VAC with switch, 240V-370VDC
- Rated Current: 12.54A at 12V, 10A at 15V, 6.5A at 24V, 4.3A at 36V, 3.3A at 48V
- Ripple & Noise: Max. 150mVp-p for 12V, 200mVp-p for others
- Efficiency: Up to 90%
- Operating Temperature: -30°C to 70°C
- Protections: Overload, Overvoltage, Overtemperature, Short Circuit
- Dimensions: 159mm x 97mm x 30mm
- Housing: Metallic mesh case for heat dissipation
- Safety Standards: UL60950-1, TUV EN60950-1, IEC 60335-1, EN61558-1/-2-16, GB4943
- Vibration Resistance: 5G
- Altitude: Up to 5000 meters
Buy the Mean Well Series LRS 150W Power Supply: LRS15048
Enhance your industrial or household systems with the reliable and efficient 150W power supply from the LRS-150 series. Featuring high efficiency up to 90%, selectable input voltages, and operating temperatures from -30°C to 70°C, it ensures consistent performance in demanding environments. Its rugged metallic case facilitates excellent heat dissipation, while protections against overload, overvoltage, and temperature make it a safe choice. Easily order online today and get a robust power solution with a 3-year warranty, perfect for automation, control, and electronics applications.
Order your Mean Well Series LRS15048 power supply today and ensure reliable, energy-efficient power for your industrial or household projects.
Frequently Asked Questions
Where can I buy MEAN WELL LRS15048?
You can click on the BUY or RFQ button to purchase LRS15048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS15048?
You can download the LRS15048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS15048?
MEAN WELL
