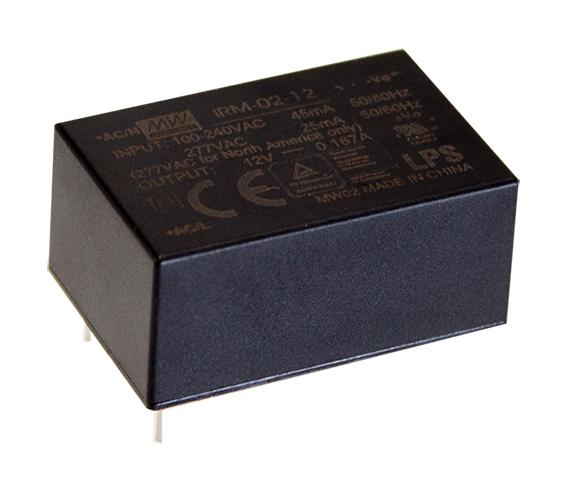

MEAN WELL IRM0212 Miniature AC-DC Power Module
IRM-02 is a compact 2W AC-DC power supply module designed for electronic and industrial automation applications. Measuring 33.7*22.2*15mm, it supports a universal input voltage of 85~305VAC, ensuring compatibility across global power systems. The fully-potted silicone case enhances heat dissipation, dust, and moisture resistance, while its EMI filtering meets EN55022 Class B standards. With high efficiency up to 77%, low no-load power consumption below 0.075W, and a Class II design, it guarantees reliable performance, low electromagnetic interference, and compliance with safety standards, suitable for a variety of industrial and electronic devices.
MEAN WELL IRM0212 Miniature AC-DC Power Module Specifications:
- Power Rating: 2W
- Input Voltage Range: 85~305VAC
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Current: 600mA (3.3V), 400mA (5V), 222mA (9V), 167mA (12V), 133mA (15V), 83mA (24V)
- Ripple & Noise: max. 150mVp-p (except 15V, 24V which are 200mVp-p)
- Efficiency: Up to 77%
- No Load Power Consumption: <0.075W
- Isolation Voltage: 3KVAC (output to input)
- Operating Temperature: -30°C to +85°C
- Working Humidity: 20% to 90% RH, non-condensing
- Vibration Resistance: 10-500Hz at 5G
- Certification: UL, TUV, EN60950-1, EN61000-4-2/3/4/5/6/8/11, EN55022 Class B
Buy the Mean Well IRM-02 Reliable Power Supply for Industrial Applications
Enhance your industrial or electronic projects with the compact and reliable IRM-02 series power supply. Featuring universal input, high efficiency up to 77%, low no-load power consumption, and compliance with EMI standards, this 2W module is suitable for a wide range of automation, control, and portable electronic devices. Its robust construction ensures resistance to dust, moisture, and vibration, while its safety certifications guarantee secure operation across various environments. Purchase the IRM-02 series online today for quality you can trust in demanding industrial applications.
Order your Mean Well series IRM-02 power supply today and provide your electronic devices and automation systems with dependable performance.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0212?
You can click on the BUY or RFQ button to purchase IRM0212 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0212?
You can download the IRM0212 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0212?
MEAN WELL
