MEAN WELL IRM0215 Power Supply Module

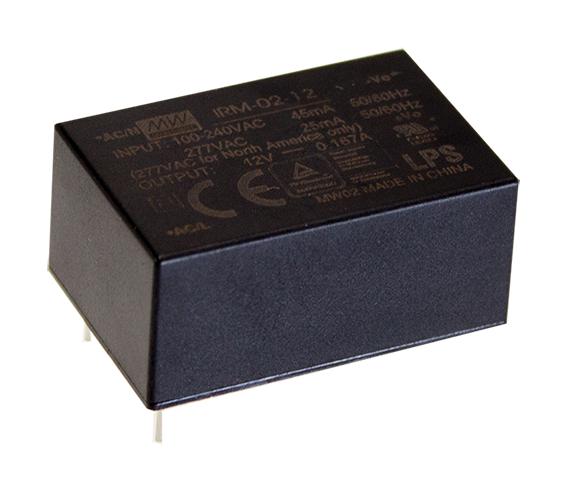

IRM-02 is a compact 2W power supply module designed for versatile use in electronic and industrial automation equipment. Measuring 33.7×22.2×15mm, it features a phenolic case with silicone potting for enhanced heat dissipation, dust, and moisture resistance. Supporting an input voltage of 85~305VAC, it offers up to 77% efficiency and consumes less than 0.075W at no load, complying with low power regulation standards. Built-in EMI filtering ensures EN55022 Class B compliance, with protections against short circuits, overloads, and overvoltage. Suitable for PCB and SMD mounting, offering reliable and safe power for various electronic applications.
MEAN WELL IRM0215 Power Supply Module Specifications:
- Input Voltage Range: 85~305VAC
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Power: 2W
- Output Current: 600mA, 400mA, 222mA, 167mA, 133mA, 83mA
- Efficiency: Up to 77%
- No-Load Power Consumption: <0.075W
- Ripple & Noise: Max. 200mVp-p
- Protection: Short Circuit, Overload, Overvoltage (Hiccup Mode)
- Operating Temperature: -30°C to +85°C
- Vibration Resistance: 5G, 10~500Hz
- EMC Compliance: EN55022 Class B
- Isolation Voltage: 3KVAC (O/P to GND)
- Thermal & Dust Resistance: Phenolic Case, Silicone Pottings
- Dimensions: 33.7×22.2×15mm (PCB Mount), 33.7×22.2×4.6cm (SMD)
- Certifications: UL60950-1, TUV EN60950-1
Buy the Mean Well Series IRM-02 Power Supply: IRM-02-15
Purchase the reliable and compact IRM-02 series power supply online today. Designed for industrial and electronic applications, it offers high efficiency, low power consumption, and comprehensive protections. With universal input voltage support, EMI filtering, and rugged construction, it ensures stable operation even in vibration-prone environments. Ideal for PCB and SMD mounting, this power module guarantees safety, durability, and performance. Order now to benefit from fast delivery, competitive pricing, and a three-year warranty for your automation and electronic projects.
Buy Mean Well IRM-02-15 power supply now and experience unmatched reliability and performance for your electronic and industrial automation projects.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0215?
You can click on the BUY or RFQ button to purchase IRM0215 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0215?
You can download the IRM0215 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0215?
MEAN WELL
