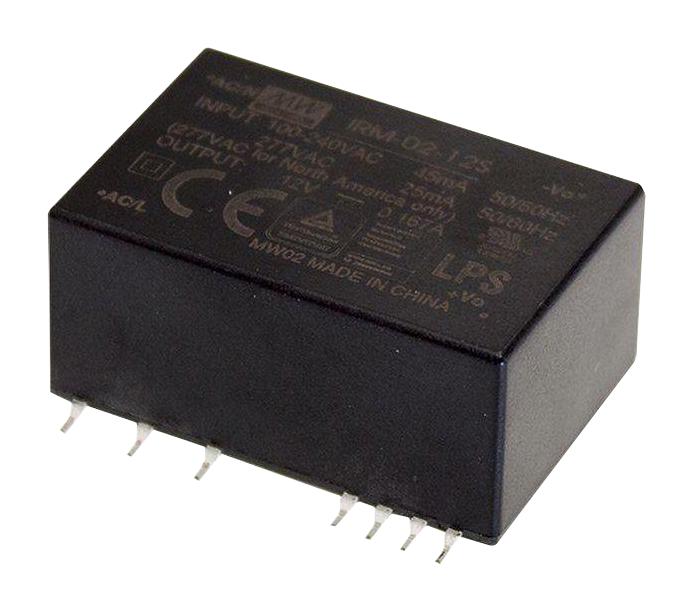

MEAN WELL IRM0215S Miniature Power Supply
IRM-02 series is a compact 2W AC-DC power supply with a fully integrated, encapsulated design suitable for industrial automation and electronic devices. It supports universal input voltages from 85 to 305VAC, with high efficiency up to 77% and ultra-low no-load power consumption below 0.075W, meeting worldwide energy regulations. Its phenolic case and potting silicone boost heat dissipation and vibration resistance up to 5G, ensuring reliability in dusty and moist environments. Compliant with EN55022 Class B EMC standards, this high-reliability module offers protections against short circuits, overloads, and overvoltage, plus a 3-year warranty.
MEAN WELL IRM0215S Miniature Power Supply Specifications:
- Input Voltage Range: 85~305VAC
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Power: 2W
- Ripple & Noise (max): 150mVp-p to 200mVp-p depending on model
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Efficiency: Up to 77%
- No Load Power Consumption: <0.075W
- Operating Temperature: -30°C to +85°C
- Isolation Voltage: 3KVAC (O/P to O/P)
- Vibration Resistance: Up to 5G
- Certifications: UL60950-1, TUV EN60950-1, EMC compliance to EN55022 Class B
- Protection Features: Short Circuit, Overload, Overvoltage
- Dimensions: 33.7mm x 22.2mm x 15mm
- Cooling: Free air convection
- Application: Industrial equipment, automation, electronic devices
- Warranty: 3 years
Buy the Mean Well Series IRM-02 2W Power Supply: IRM-02-15
Purchase the compact and reliable IRM-02 series power supply online today. Designed for industrial automation and electronics, this 2W module offers universal input, high efficiency up to 77%, ultra-low no-load power consumption, and robust vibration resistance. Its encapsulated design ensures durability in dusty and moist environments, while comprehensive protections safeguard your equipment. Easy to install, highly efficient, and backed by a 3-year warranty, this power supply is the ideal choice for engineers seeking dependable power solutions for diverse industrial and electronic applications.
Get Mean Well IRM-02-15 today—built for precision, high efficiency, and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0215S?
You can click on the BUY or RFQ button to purchase IRM0215S from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0215S?
You can download the IRM0215S datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0215S?
MEAN WELL
