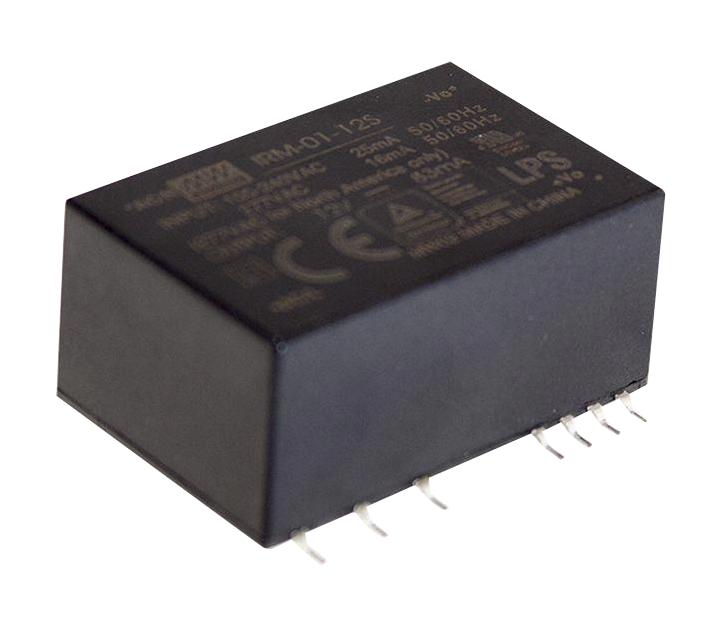

MEAN WELL IRM0112S Miniature Power Module
IRM-01 is a compact 1W power supply module measuring 33.7 x 22.2 x 15mm, suitable for PCB soldering in electronic devices or industrial automation. It features universal input voltage of 85~305VAC, high efficiency up to 77%, and low no-load power consumption below 0.075W, meeting global low power standards. The fully-potted silicone case offers excellent heat dissipation, vibration resistance up to 5G, and protection against dust and moisture. Compliant with EN55022 Class B EMI standards, it includes short circuit, overload, and overvoltage protections, making it highly reliable for industrial and electronic applications.
MEAN WELL IRM0112S Miniature Power Module Specifications:
- Input Voltage: 85~305VAC, 120~430VDC
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Power: 1W for all models
- Output Current: 300mA (3.3V), 200mA (5V), 111mA (9V), 83mA (12V), 67mA (15V), 42mA (24V)
- Ripple & Noise: Max 150mVp-p (varies by model)
- Voltage Tolerance: ±2.5%
- Line & Load Regulation: 0.5%
- Efficiency: Up to 77%
- Operating Temperature: -30°C to +85°C
- Humidity: 20% to 90% RH non-condensing
- Vibration Resistance: Up to 5G
- Safety Standards: UL60950-1, EN60950-1, optional IEC60601-1, EN60335-1
- Isolation Voltage: U/P-OIP: 3kVAC
- EMC Compliance: EN55022 Class B, EN61000-3-2/-3
Buy the Mean Well Series IRM Power Supply: IRM-01-12
Order the Precision Miniature Power Module online now to ensure your electronic or industrial automation projects benefit from high efficiency, robust design, and compliance with international standards. This compact 1W power supply features universal voltage range, low power consumption, and excellent EMI filtering, making it ideal for space-constrained applications needing reliable power delivery, vibration resistance, and dust/moisture protection. Get fast delivery and convenience by purchasing online today and enhance your project’s efficiency with this trusted power solution.
Buy Mean Well IRM-01-12 now and experience unmatched reliability and performance in industrial power applications with excellent EMC and vibration resistance.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0112S?
You can click on the BUY or RFQ button to purchase IRM0112S from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0112S?
You can download the IRM0112S datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0112S?
MEAN WELL
