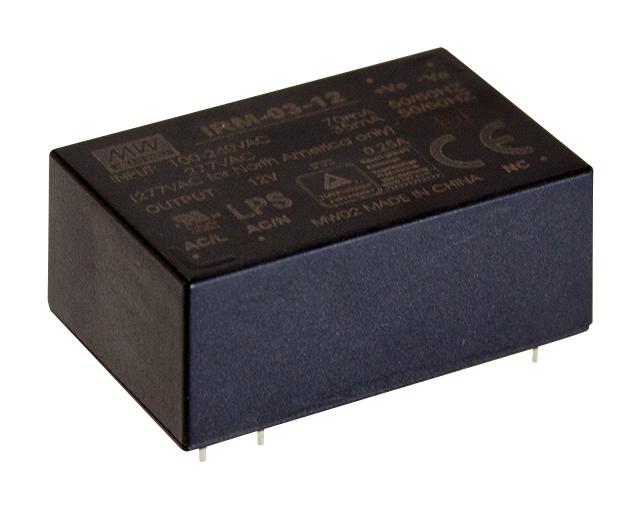

MEAN WELL IRM0333 power supply module
The IRM-03 series is a compact, 3W power supply module designed for industrial and electronic applications. Featuring a universal AC input of 85~305VAC, it offers multiple output voltages such as 3.3V, 5V, 12V, 15V, and 24V with rated currents up to 900mA. Its fully encapsulated design, with phenolic casing and silicone potting, ensures excellent heat dissipation, vibration resistance, and dust/moisture protection. Compliant with EN55022 Class B EMI standards, it features protections against short circuit, overload, and overvoltage, with high efficiency up to 80%. Suitable for factory automation, medical, and handheld devices, the module guarantees reliable performance in demanding environments.
MEAN WELL IRM0333 power supply module Specifications:
- Power Output: 3W
- Input Voltage Range: 85~305VAC
- Output Voltages & Currents: 3.3V (900mA), 5V (600mA), 12V (333mA), 15V (250mA), 24V (200mA)
- Ripple & Noise: 100mVp-p to 240mVp-p depending on model
- Output Voltage Tolerance: ±2.5%
- Line Regulation: 0.5%
- Load Regulation: 0.5% to 1.0%
- Efficiency: Up to 80%
- Operating Temperature: -30°C to +85°C
- Dimensions: PCB mounting style 37×24×15mm, SMD style 37×24×16mm
- Isolation Voltage: 3kV AC (output to ground)
- Safety Certifications: UL60950-1, TUV EN60950-1, optional IEC60601-1, EN60335-1
- Vibration Resistance: Up to 5G
- Protections: Short circuit, overload, overvoltage
- EMC: EN55022 Class B, EN61000-3-2,3
- MTBF: 2137.6K hours at 25°C
Buy the Mean Well Series IRM Power Supply: IRM0333
Experience reliable power conversion with the IRM-03 series. This compact, 3W power supply offers universal input, multiple output options, high efficiency, and robust protections. Designed for industrial automation, medical, and electronic equipment, it guarantees stability, low noise, and vibration resistance. Easy to install and compliant with global safety standards, it ensures long-lasting performance in demanding environments. Order the IRM0333 online now to enhance your electronic or industrial system efficiency and dependability.
Get Mean Well IRM0333 today—built for high reliability, compact size, and efficient power delivery in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0333?
You can click on the BUY or RFQ button to purchase IRM0333 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0333?
You can download the IRM0333 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0333?
MEAN WELL
