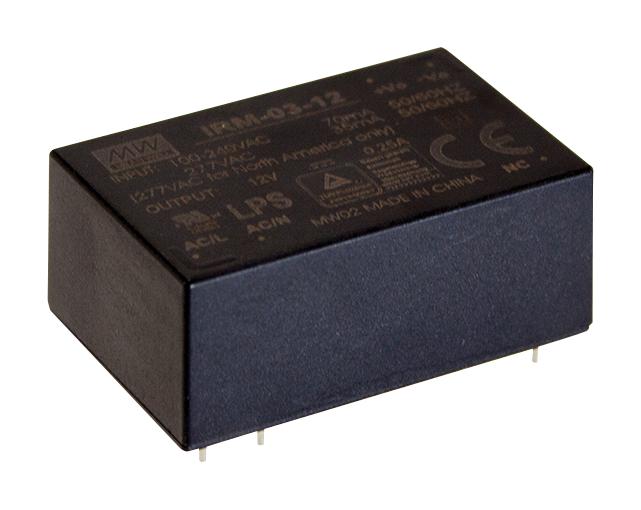

MEAN WELL IRM035 Miniature Power Supply Module
IRM-03 is a compact 3W AC-DC power supply module designed for industrial and electronic applications. It features a universal input voltage range of 85~305VAC, high efficiency up to 80%, and low no-load power consumption below 0.075W. The fully pot-potted phenolic case enhances heat dissipation and vibration resistance up to 5G, providing dust and moisture resistance. Compliant with EN55022 Class B, it incorporates EMI filtering for electromagnetic interference immunity. Available in PCB mounting and SMD styles, the IRM-03 series offers reliable protection against short circuits, overloads, and over-voltage, ensuring long-lasting performance for automation equipment, industrial electronics, and more.
MEAN WELL IRM035 Miniature Power Supply Module Specifications:
- Power: 3W
- Input Voltage: 85~305VAC
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Current: up to 900mA for 3.3V, 600mA for 5V, 333mA for 9V, 250mA for 12V, 200mA for 15V, 125mA for 24V
- Ripple & Noise: 100mVp-p (for 3.3V, 5V, 9V), 150mVp-p (for 12V), 200mVp-p (for 15V), 240mVp-p (for 24V)
- Voltage Tolerance: ±2.5%
- Line Regulation: 0.5%
- Load Regulation: 1.0% (for larger models, load regulation varies slightly)
- Efficiency: up to 80%
- Operating Temperature: -30°C to +85°C
- Protection: Short circuit, Overload, Over-voltage, Hiccup mode
- Isolation Voltage: 3kVAC (I/O to I/O)
- Dimensions: 37mm x 24mm x 15-16mm (LxWxH)
- Compliance: UL60950-1, TUV EN60950-1, EN55022 Class B, EN61000-4 immunity, IEC60601-1 (optional)
Buy the Mean Well 3W Series U+2013 Reliable Power Supply for Industrial Applications
Purchase the reliable and compact 3W power supply module online today. Designed for industrial automation, this module features universal input voltage, high efficiency, and comprehensive protection. Its fully-potted phenolic case ensures durability against vibration, dust, and moisture, making it suitable for factory automation, electronic instruments, and high-reliability systems. With EMI filtering and low power consumption, it's optimized for energy-efficient operations. Easy to integrate with PCB or SMD mounting options, order now to ensure continuous, stable operation of your electronic projects and industrial equipment.
Get Mean Well 3W Series today—built for precision and long-lasting durability in industrial electrical equipment.
Frequently Asked Questions
Where can I buy MEAN WELL IRM035?
You can click on the BUY or RFQ button to purchase IRM035 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM035?
You can download the IRM035 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM035?
MEAN WELL
