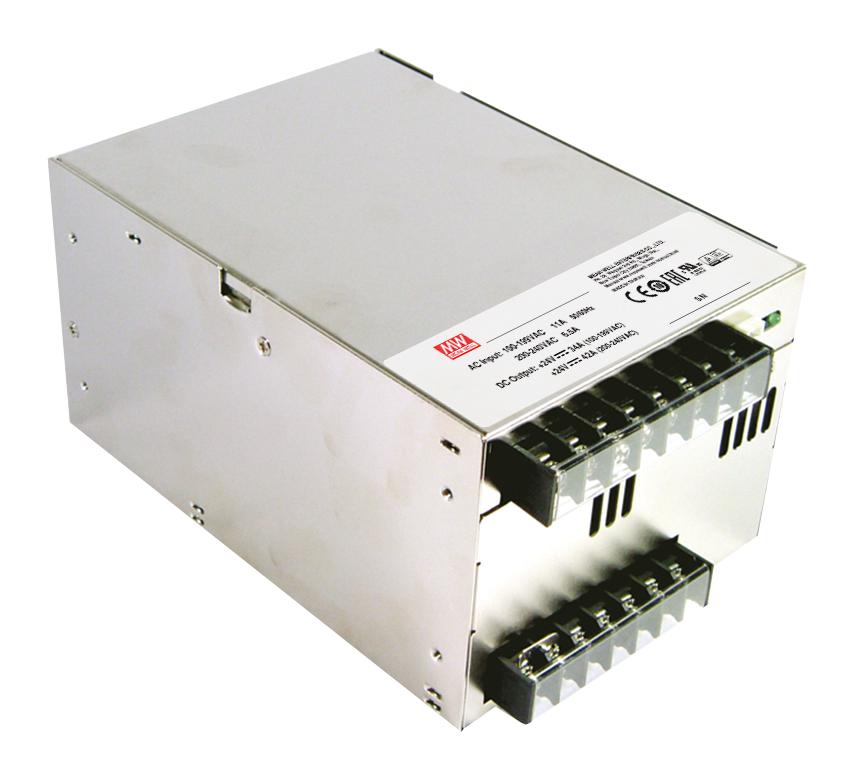

MEAN WELL PSPA100012 Power Supply
The PSPA-1000 series is a high-efficiency 1KW AC/DC power supply designed for industrial automation, control systems, and test equipment. Operating from 90~264VAC, it features built-in active Power Factor Correction, remote ON-OFF, remote sense, and current sharing capabilities up to 4000W. With protections for short circuit, overload, over voltage, and temperature, it ensures reliable operation in a wide temperature range from -20°C to +70°C. Its robust design, integrated fan, and multiple safety certifications make it ideal for demanding factory and laboratory applications.
MEAN WELL PSPA100012 Power Supply Specifications:
- Input Voltage: 90~264VAC, 47-63Hz
- Rated Power: 960W to 1008W depending on model
- Output Voltage: 12V, 15V, 24V, 48V options
- Rated Current: 80A, 64A, 42A, 21A respectively
- Ripple & Noise: Max 150mVp-p to 450mVp-p
- Efficiency: Up to 94%
- Operating Temperature: -20°C to +70°C (derating required above 50°C)
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Remote Sense: Compensates voltage drop up to 0.6V
- Remote ON-OFF: Built-in control
- Current Sharing: Up to 4000W with parallel connection
- Dimensions: 470mm x 120mm x 93mm
- Safety Standards: UL 62368-1, TUV EN 62368-1, BSMI CNS 14336-1
- MTBF: 274,300 hours minimum
- Cooling: Forced air via built-in DC fan
- Certifications: UL, TUV, EN, BSMI, CE
Buy the Mean Well PSPA-1000 Reliable Power Supply for Industrial Applications
Purchase the Mean Well PSPA-1000 power supply online today and ensure reliable, efficient power for your industrial automation, testing, and control systems. Featuring 1KW output, high efficiency up to 94%, built-in active PFC, remote control, and current sharing capabilities, this power supply is designed for durability and safety in challenging environments. Easy to install with standard mounting specifications, it meets multiple safety standards, ensuring compliance and reliability. Enhance your setup now with this versatile, high-performance power unit for continuous operation in factory and laboratory settings.
Get Mean Well PSPA-1000 today—built for precision, high efficiency, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL PSPA100012?
You can click on the BUY or RFQ button to purchase PSPA100012 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part PSPA100012?
You can download the PSPA100012 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of PSPA100012?
MEAN WELL
