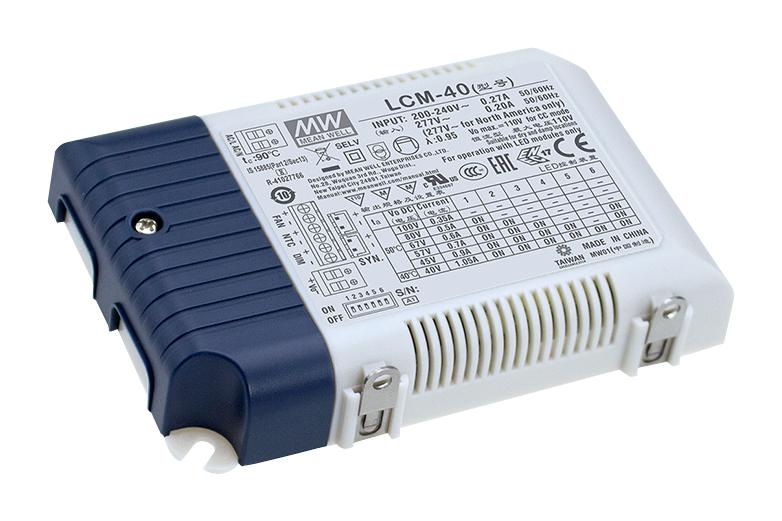

MEAN WELL LCM40 LED Driver
The LCM-40 series is a 40W LED driver offering multiple current levels through DIP switch selection, operating from 180 to 295VAC input with efficiency up to 92%. It features a fanless design that operates in temperatures from -30°C to +90°C, with built-in functions such as dimming, synchronization of up to 10 units, and optional wireless EnOcean module. Ideal for indoor, office, architectural, and panel lighting, it provides reliable power with standby power consumption below 1W and a 3-year warranty. Its compact, plastic, Class II housing ensures safety and durability across diverse LED lighting applications.
MEAN WELL LCM40 LED Driver Specifications:
- Rated Power: 42W
- Input Voltage Range: 180~295VAC
- Output Voltage Range: 2~100V
- Output Current Levels: 350mA, 500mA, 600mA, 700mA, 900mA, 1050mA
- Efficiency: Up to 92%
- Power Factor: >0.97 at full load
- Total Harmonic Distortion: <15%
- Standby Power Consumption: <1W
- Open Circuit Voltage (max.): 110V
- Case Temperature Range: -30°C to +90°C
- Dimensions: 123.5mm (L) x 81.5mm (W) x 23mm (H)
- Protection: Over Voltage, Over Temperature, Short Circuit, Auto recovery
- Dimming: 0-10VDC, PWM, Resistance (3-in-1), optional wireless sync
- Sync Operation: Up to 10 drivers, cable length <5m, 22-24 AWG cable
- Input Frequency Range: 47~63Hz
- Total Harmonic Distortion: <15%
- MTBF: 260,600 hours
- Certifications: UL, ENEC, GB, CE, CB
- Standby Power Consumption: <1W
- Weight: 0.24 kg
Buy the Buy MEAN WELL 40W LED Driver Part Number LCM40 Online
Purchase the MEAN WELL LCM-40 series LED driver online today and benefit from its high efficiency up to 92%, adjustable current levels, fanless operation, and multiple dimming options. This 40W driver features built-in synchronization for up to 10 units, optional wireless EnOcean module, and a robust plastic case suitable for various indoor LED lighting applications including office, architectural, and panel lights. Enjoy a 3-year warranty, low standby power consumption under 1W, and reliable operation across temperatures from -30°C to +90°C, ensuring long-term performance and safety.
Buy MEAN WELL LCM40 now and experience unmatched reliability and performance with adjustable current and advanced dimming features.
