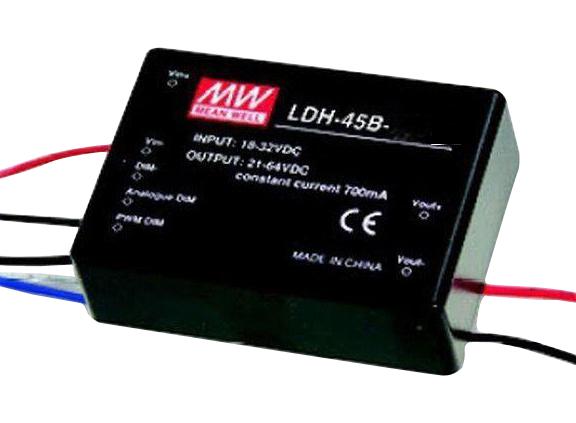

MEAN WELL LDH45B350 LED Driver
The MEAN WELL LDH series is a high-efficiency, encapsulated LED driver designed for constant current LED lighting applications. It features a wide output voltage up to 126VDC, PWM and analog dimming options, and DALI control. Suitable for indoor environments, it offers protections against short circuits, overvoltage, and undervoltage, with a working temperature range of -40°C to +70°C. Its robust design ensures reliable performance in professional lighting and signage installations, making it ideal for industrial and commercial LED lighting projects requiring precise current control and energy efficiency.
MEAN WELL LDH45B350 LED Driver Specifications:
- Input Voltage Range: 9-32VDC depending on model
- Output Voltage: up to 126VDC
- Rated Current: 350mA, 500mA, 700mA, 1050mA
- Rated Power: 30.1W to 45.15W depending on model
- Efficiency: up to 95%
- Ripple & Noise: Max 2.5Vp-p
- Protection: Short circuit, Over voltage, Under voltage
- Working Temperature: -40°C to +70°C
- Humidity: 20% to 90% RH non-condensing
- Dimming: PWM, analog, DALI (DA type)
- Certifications: CE, complies with EN55015 and EN61547
- Dimensions: 53mm (L) x 22.7mm (W) x 15mm (H)
- Vibration Resistance: 10-500Hz, 2G
- MTBF: 1179.3K hours
Buy the MEAN WELL Series LDH LED Driver: LDH-45B-350
Experience reliable and energy-efficient LED lighting with the MEAN WELL LDH series LED driver. Compatible with various dimming options including PWM, analog, and DALI, it ensures precise current regulation for professional lighting setups. Its high efficiency up to 95% helps reduce energy consumption, while protections against short circuits and overvoltage safeguard your system. Fully encapsulated for durability and operating seamlessly between -40°C and 70°C, this LED driver is ideal for commercial, industrial, and signage applications. Purchase online now for guaranteed quality and professional support.
Get MEAN WELL LDH-45B-350 today—built for precision current control and long-lasting durability.
Frequently Asked Questions
Where can I buy MEAN WELL LDH45B350?
You can click on the BUY or RFQ button to purchase LDH45B350 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LDH45B350?
You can download the LDH45B350 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LDH45B350?
MEAN WELL
