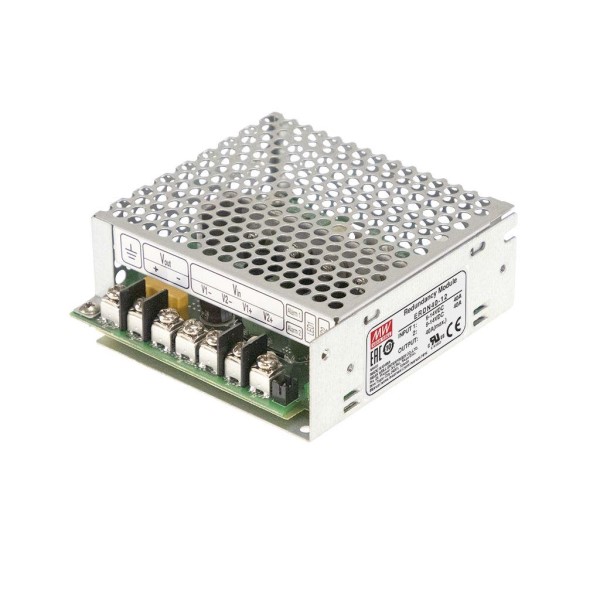

MEAN WELL ERDN4012 40A Redundancy Module
The MEAN WELL ERDN40 series is a 40A redundancy module that can be used with a power supply to improve overall system operation reliability. Key features include 12V/24V/48V input voltage selection, support for N+1 and 1+1 redundancy systems, built-in two rails DC input contacts, and a single output. The MOSFET technology implemented reduces heat loss and the voltage difference between the input and output voltages. It also features built-in 2 channels DC OK relay contacts for monitoring output status and ultra-wide operating temperature.
MEAN WELL ERDN4012 40A Redundancy Module Specifications:
- Model: ERDN40 - 24
- DC Voltage Range: 12V/24V/48V
- Rated Current: 40A
- Voltage Drop (Vin-Vout) (max.): 0.2V
- Input: 2 Channels
- Efficiency (Typ.): 98%
- Output: 40A
- Safety Standards: IEC62368-1, UL62368-1, EAC TP TC 004
- Working Temp.: -40 ~ +80℃ (Refer to Derating Curve)
- Working Humidity: 5 ~ 95% RH non-condensing
- Storage Temp.: -40 ~ +85℃
- Temp. Coefficient: ±0.03%/℃(0 ~ 60℃)
- Vibration: Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373
- MTBF: 1687.9K hrs min. (Telcordia SR-332); 294.1K hrs min. (MIL-HDBK-217F)
- Dimension: 97*99*36mm (W*D*H)
- Weight: 0.276Kg; 45psc/14Kg/0.94CUFT
- Withstand Voltage: IP/OP - Chassis: 0.5KVac; IP/OP- Relay: 0.5KVac; Relay - Chassis: 0.5KVac
- Isolation Resistance: >100M Ohms / 500Vdc / 25℃/ 70% RH
- Environment: 0~40A per input
- Peak Current (max.): 60A, 5Sec.
- DC Normal Voltage: 12Vdc
- Short Circuit: No damage
- Input Reverse Current (max.): 1mA
- Input Reverse Voltage (max.): 40Vdc
- LED Status Display: Green LED - OK
- Redundancy: Supports 1+1 and N+1 redundancy systems
- Cooling: Free air convection
- Operating Altitude: 5000 meters/OVCII
- EMC Emission: BS EN/EN55032(CISPR32) Class B
- EMC Immunity: BS EN/EN55032(CISPR32) Class B
- ESD: BS EN/EN61000-4-2
- Radiated: BS EN/EN61000-4-3
- EFT / Burst: BS EN/EN61000-4-4
- Surge: BS EN/EN61000-4-5
- Conducted: BS EN/EN61000-4-6
- Magnetic Field: BS EN/EN61000-4-8
- Harmonic Current: BS EN/EN55035, BS EN/EN61000-6-2(BS EN/EN50082-2), BS EN/EN55024
