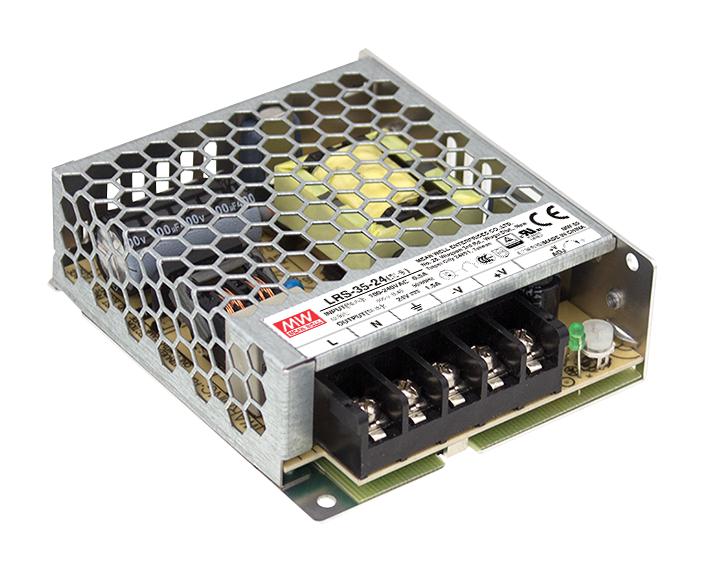

MEAN WELL LRS3536 power supply unit
The LRS-35 series is a 35W single-output power supply designed with a low profile of 30mm, suitable for industrial automation, control systems, and household appliances. Operating from 85~264VAC, it offers an efficient, compact, fanless design with high temperature tolerance up to 70°C. Features include protections against short circuits, overloads, and overvoltages, with a robust metallic mesh case that enhances heat dissipation. It also endures high vibration and altitude, meeting international safety standards like IEC/EN 60335-1 and UL60950-1, making it reliable for various industrial and household applications. It provides multiple output voltages from 5V to 48V, with efficiency up to 89%, ensuring low no-load power consumption and high durability.
MEAN WELL LRS3536 power supply unit Specifications:
- Input Voltage: 85~264VAC, 120~373VDC
- Efficiency: Up to 89%
- Output Voltages: 5V, 12V, 15V, 24V, 36V, 48V
- Rated Power: 35W
- Output Current: 7A for 5V, 3A for 12V, 2.44A for 15V, 1.5A for 24V, 1A for 36V, 0.8A for 48V
- Ripple & Noise: Max 80mVp-p for 5V, up to 200mVp-p for higher voltages
- Voltage Adjustment Range: 4.5–5.5V for 5V, 10.2–13.8V for 12V, up to 52.8V for 48V series
- Protection: Short circuit, overload (110-150%), over voltage
- Temperature Range: -30°C to +70°C, Derating above 2000m altitude
- Vibration Resistance: 5G for 10 minutes along X, Y, Z axes
- Isolation Voltage: 3.75KVAC P-O/P, 2KVAC I/P-FG
- Dimensions: 99 x 82 x 30 mm
- Certifications: UL60950-1, TUV EN60950-1, IEC/EN 60335-1, IEC/EN 61558-1/2-16, GB4943
- MTBF: 763.6K hours at 25°C
- Full load burn-in test, 3-year warranty
- Cooling: Free air convection, metallic mesh case for heat dissipation
Buy the Mean Well LRS-35 – Reliable Power Supply for Industrial Applications
Secure your industrial and household equipment with the high-performance LRS-35 power supply. Its high efficiency up to 89%, low no-load power consumption, and comprehensive protections ensure dependable operation. Designed for a wide voltage range from 85V to 264VAC, it operates reliably in temperatures from -30°C to 70°C, including high vibration environments and high altitudes up to 5000 meters. This compact, low-profile power supply meets international safety standards and is perfect for automation, control systems, and electronics requiring stable, efficient power delivery.
Buy the Mean Well LRS-35 power supply now and experience unmatched reliability, high efficiency, and robust protection for industrial and household electronics.
Frequently Asked Questions
Where can I buy MEAN WELL LRS3536?
You can click on the BUY or RFQ button to purchase LRS3536 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS3536?
You can download the LRS3536 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS3536?
MEAN WELL
