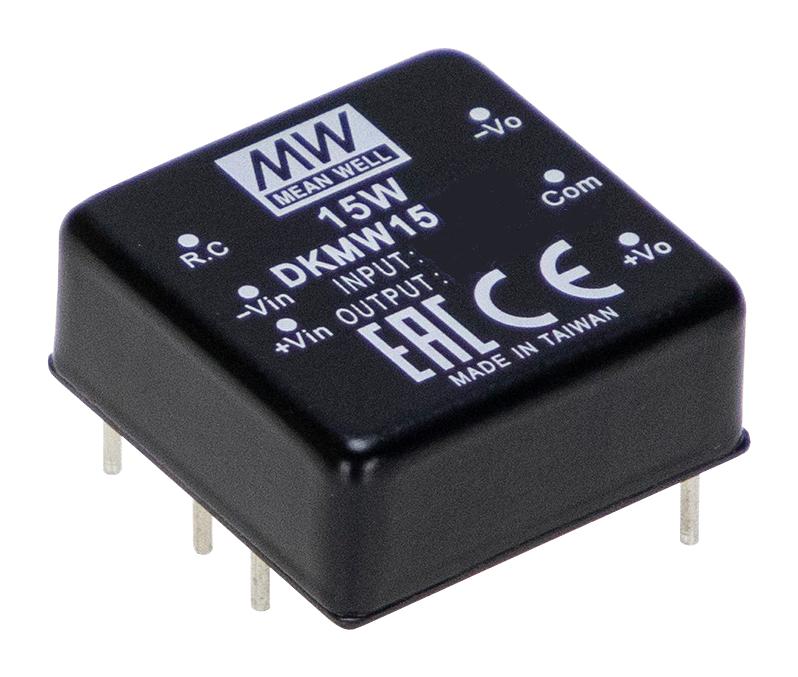

MEAN WELL DKMW15F15 Industrial Power Module
The DKMW15F15 series is a 15W isolated and regulated DC-DC converter module in a compact 1x1 inch DIP package, featuring an 89% efficiency, wide temperature range of -40°C to +85°C, and 3KVDC input-output isolation. It supports input voltages of 18-75V, providing dual or single outputs such as 5V, 12V, or 15V, making it suitable for industrial, telecom, and power distribution applications. The device includes protections against short circuits, overloads, overvoltage, and under-voltage, compliant with safety and EMC standards, with reliable performance in various demanding environments.
MEAN WELL DKMW15F15 Industrial Power Module Specifications:
- Input Voltage Range: 18~75V, single or dual outputs
- Output Voltages: 3.3V, 5V, 12V, 15V (single and dual modes)
- Rated Power: 15W
- Efficiency: Up to 89%
- Isolation Voltage: 3KVDC (Input-Output)
- Operating Temperature Range: -40°C to +85°C
- Ripple & Noise: 50mVp-p (max.)
- Line Regulation: +0.5%
- Load Regulation: +0.5%
- Switching Frequency: ~300KHz
- Short Circuit Protection: Continuous, automatic recovery
- Overload & Overvoltage Protections: Yes, auto-recovery
- Start-up Voltage: 17.3V (48V input), 9V (24V input)
- Cooling: Free-air convection
- Enclosure: Metal case with non-conductive base
- Size: 25.4x25.4x10.2mm
- Certifications: EAC, UL, CE compliant
- Electromagnetic Compatibility: EN55032 Class A without external components
- Vibration: 10-500Hz, 2G for 60 min along X, Y, Z axes
- Soldering Temperature: Max 265°C for 3-5 sec.
- Ingress Protection: Suitable for industrial environments
Buy the Mean Well Series DKMW15 15W Power Module: DKMW15F15
Purchase the DKMW15F15 series DC-DC converter online today and enjoy reliable power conversion in demanding industrial and telecom environments. This compact, 15W power module offers high efficiency up to 89%, wide temperature range from -40°C to +85°C, and superior electrical isolation of 3KVDC, ensuring safety and steady performance. Equipped with protections for short circuits, overloads, and overvoltage, and compliant with EMC standards, it’s ideal for distributed power architectures, instrumentation, and control systems. Secure your supply chain now!
Buy Mean Well DKMW15F15 now and experience unmatched reliability and performance with high efficiency, extensive protections, and wide temperature operation.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW15F15?
You can click on the BUY or RFQ button to purchase DKMW15F15 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW15F15?
You can download the DKMW15F15 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW15F15?
MEAN WELL
