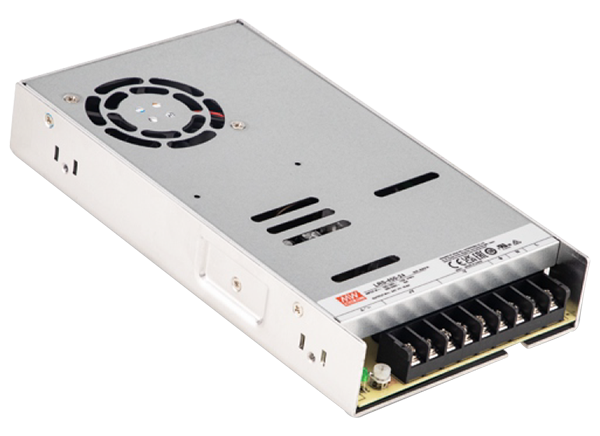

MEAN WELL LRS45015 Single Output Switching Power Supply
The MEAN WELL LRS-450 series is a 450W single-output enclosed power supply designed with a 35mm low-profile. It adopts an input of 115VAC or 230VAC (selectable by switch) and provides an output voltage line of 5V, 12V, 15V, 24V, 36V, and 48V. With high efficiency up to 92%, and built-in long-life fan, the LRS-450 can work under -20°C ~ +70°C with full load. It has complete protection functions and 5G anti-vibration capability, compliant with international safety regulations. The LRS-450 series serves as a high price-to-performance power supply solution for various industrial applications.
MEAN WELL LRS45015 Single Output Switching Power Supply Specifications:
- Model Encoding: LRS-450-15
- Output Voltage: 15V
- Rated Current: 30A
- Current Range: 0 ~ 30A
- Rated Power: 450W
- Voltage Adj. Range: 14.25 ~ 16.5V
- Line Regulation: ±1.5%
- Load Regulation: ±1.0%
- Setup, Rise Time: 16ms/230VAC, 12ms/115VAC
- Hold Up Time: 1500ms
- Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC
- Frequency Range: 47 ~ 63Hz
- Efficiency: 92%
- Input Inrush Current: 10A/115VAC, 6A/230VAC
- Leakage Current: <2mA / 240VAC
- Over Load: 105 ~ 150% rated output power
- Over Voltage: 36V
- Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: 100M Ohms/500VDC
- Working Temp.: -20 ~ +70℃
- Working Humidity: 20 ~ 90% RH
- Storage Temp., Humidity: -40 ~ +85℃, 10 ~ 95% RH
- Temp. Coefficient: ±0.03%/℃
- Vibration: 10 ~ 500Hz
- MTBF: 1508.9K hrs
- Dimension: 225*124*35mm
- Packing: 0.85Kg/15pcs/14.11Kg/0.85CUFT
- Ripple & Noise (max.): 200mVp-p
- Voltage Tolerance: ±1.0%
- Protection: Short circuit / Overload / Over voltage / Over temperature
Buy the LRS-450-15 MEAN WELL Single Output Switching Power Supply | myMectronic
Purchase the MEAN WELL LRS-450-15 power supply securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL LRS45015?
You can click on the BUY or RFQ button to purchase LRS45015 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS45015?
You can download the LRS45015 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS45015?
MEAN WELL
