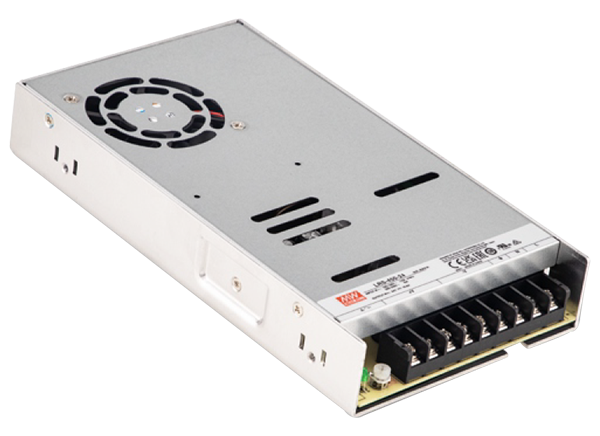

MEAN WELL LRS6005 Single Output Switching Power Supply
The MEAN WELL LRS-600 series is a 600W single-output enclosed power supply designed with a 41mm low profile. It adopts an input voltage of 115VAC or 230VAC (selectable by a switch) and provides an output voltage line of 5V, 12V, 15V, 24V, 27V, 36V, and 48V. With high efficiency up to 92%, the LRS-600 can operate under -20°C to +65°C with full load. It has complete protection functions and 5G anti-vibration capability, complying with international safety regulations. This series serves as a high-price-to-performance power supply solution for various industrial applications.
MEAN WELL LRS6005 Single Output Switching Power Supply Specifications:
- MODEL: LRS-600-5
- DC VOLTAGE: 5V
- RATED CURRENT: 50A
- CURRENT RANGE: 0 ~ 50A
- RATED POWER: 600W
- OUTPUT: 5V
- LINE REGULATION: ±1.5%
- LOAD REGULATION: ±1.0%
- SETUP, RISE TIME: 1300ms, 50ms/230VAC; 1300ms,50ms/115VAC at full load; 20ms/230VAC; 16ms/115VAC at full load
- HOLD UP TIME: 200ms (Typ.)
- VOLTAGE RANGE: 90 ~ 132VAC / 180 ~ 264VAC by switch; 255 ~ 370VDC (swith on 230VAC)
- FREQUENCY RANGE: 47 ~ 63Hz
- EFFICIENCY: 90%
- INPUT: 115/230VAC
- INRUSH CURRENT: 1300ms, 50ms/230VAC; 1300ms,50ms/115VAC
- LEAKAGE CURRENT: <2mA / 240VAC
- SAFETY: BS IEC/UL 62368-1, EAC TP TC 004,AS/NZS62368.1 approved, BIS IS13252(Part1):2010/IEC60950-1:2005(except for 48V),BSMI CNS15598-1
- WITHSTAND VOLTAGE: I/P-O/P:3KVAC; I/P-FG:2KVAC; O/P-FG:0.5KVAC
- ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
- WORKING TEMP: -20 ~ +65℃
- WORKING HUMIDITY: 20 ~ 90% RH
- STORAGE TEMP, HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
- TEMP COEFFICIENT: ±0.03%/℃(0 ~ 50℃)
- VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
- MTBF: 1533.4K hrs min. (Telcordia SR-332); 301.7K hrs min. (MIL-HDBK-217F)
- DIMENSION: Not specified
- OVER LOAD: Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
- EMC IMMUNITY: Compliance to EAC TP TC 020
- EMC EMISSION: Compliance to EAC TP TC 020, BSMI CNS15936
- VOLTAGE ADJ. RANGENOTE3: 11.4 ~ 13.2V
Buy the LRS-600-5 MEAN WELL Single Output Switching Power Supply | myMectronic
Purchase the MEAN WELL LRS-600-5 securely and reliably for your industrial power needs.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL LRS6005?
You can click on the BUY or RFQ button to purchase LRS6005 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS6005?
You can download the LRS6005 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS6005?
MEAN WELL
