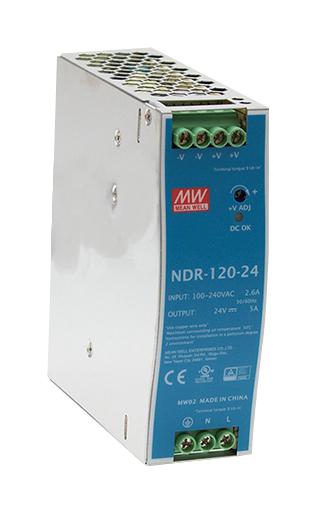

MEAN WELL NDR12048 Industrial DIN Rail Power Supply
The NDR-120 is an economical 120W DIN rail power supply designed for industrial automation and control systems. It features a slim 40mm width, supporting installation on TS-35/7.5 or TS-35/15 rails, and offers full-range AC input from 90VAC to 264VAC, conforming to EN61000-3-2 standards. With efficiency up to 89%, it operates efficiently between -20°C and 70°C. Equipped with protections against short circuit, overload, over-voltage, and over-temperature, the NDR-120 is suitable for semiconductor fabrication, factory automation, and electro-mechanical applications, backed by UL508 and other certifications. It ensures reliable, stable power delivery in demanding environments.
MEAN WELL NDR12048 Industrial DIN Rail Power Supply Specifications:
- Power Output: 120W
- Output Voltage: 12V, 24V, 48V models
- Rated Current: 14A (12V), 5A (24V), 2.5A (48V)
- Input Voltage: 90-264VAC, 127-370VDC
- Frequency Range: 47-63Hz
- Efficiency: Up to 89%
- Operating Temperature: -20°C to +70°C
- Protection: Short circuit, Overload (105-130%), Over voltage (14-17V, 29-33V, 56-65V), Over temperature
- Dimensions: 113.5mm (W) x 125.2mm (H) x 40mm (D)
- Compliance: UL508, EN61000-6-2, EN61000-3-2
- MTBF: 456,300 hours
- Installation: DIN rail TS-35/7.5 or TS-35/15
- Housing: Metal for heat dissipation
- Certifications: UL, TUV EN60950-1 approved
- Vibration Resistance: IEC60068-2-6 compliant
Buy the Mean Well NDR-120 Series – Reliable Industrial Power Supply for Automation and Control
Enhance your industrial automation setup with the 120W DIN rail power supply designed for reliable operation in demanding environments. Easy to install on TS-35 rails, it features full-range input, high efficiency up to 89%, and comprehensive protections including short circuit, overload, over-voltage, and over-temperature. Its rugged metal housing ensures excellent heat dissipation, supporting operation from -20°C to 70°C. Certified UL508 and EN standards, this power supply guarantees safety, durability, and dependable power performance in factory automation, semiconductor fabrication, and electro-mechanical systems. Purchase online today for hassle-free installation and guaranteed quality.
Order your Mean Well NDR-120 power supply today and enhance your industrial automation projects with efficient, reliable power delivery.
