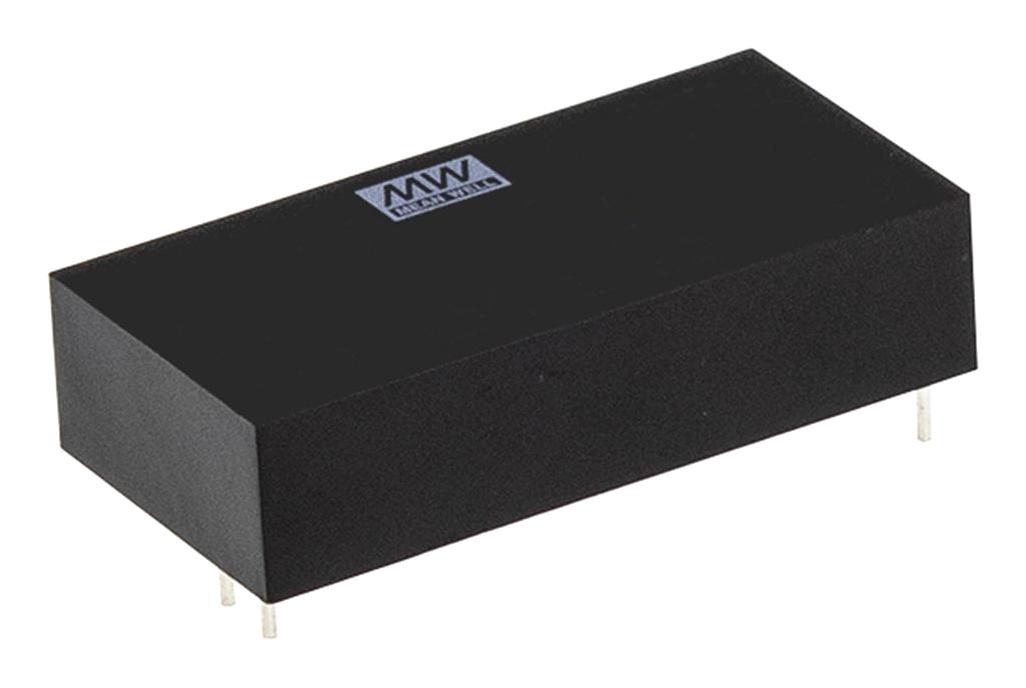

MEAN WELL MDS15A15 Medical Power Supply
The MDS15 series is a medical-grade, isolated, and regulated 15W DC-DC converter in a compact 2x1-inch package. It features high efficiency up to 88%, wide temperature operation from -40°C to +90°C, and high isolation voltage of 4kVAC between input and output. Compliant with IEC60601-1 standards, it offers continuous short circuit protection, overload, overvoltage, and low leakage current below 5μA. Suitable for medical devices, oxygen monitors, CT scanners, and medical carts, it provides reliable power with no minimum load requirement and robust protections, ensuring safe operation and durability.
MEAN WELL MDS15A15 Medical Power Supply Specifications:
- Input Voltage Range: 9~18V, 18~36V, 36~75V
- Rated Power: 15W
- Efficiency: Up to 88%
- Output Voltages: 5V, 12V, 15V, 24V (selectable)
- Output Current: Up to 1500mA depending on model
- Isolation Voltage: 4kVAC I/O
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 60mVp-p
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Switching Frequency: 250kHz - 300kHz
- Protection: Short circuit, overload, input under voltage, automatic recovery
- Dimensions: 50.8mm x 25.4mm x 12mm (2x1x0.47 inches)
- Case Material: UL94V-0 plastic
- Humidty Range: 20%–90% RH non-condensing
- Storage Temp: -55°C to +125°C
Buy the Mean Well MDS15A15 – Reliable Medical Grade DC-DC Converter for Industrial Applications
Order the reliable Medical Power Supply online today. Designed for medical applications, this 15W DC-DC converter offers high efficiency, wide temperature range, and robust safety features. It’s ideal for medical devices, monitors, and imaging equipment, ensuring operational safety and durability. With IEC60601-1 compliance, high isolation, and low leakage current, it provides peace of mind for medical professionals and engineers. Purchase now for fast delivery and unmatched performance in your medical systems and equipment.
Buy Mean Well MDS15A15 now and experience unmatched reliability and performance in medical power supplies with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy MEAN WELL MDS15A15?
You can click on the BUY or RFQ button to purchase MDS15A15 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS15A15?
You can download the MDS15A15 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS15A15?
MEAN WELL
