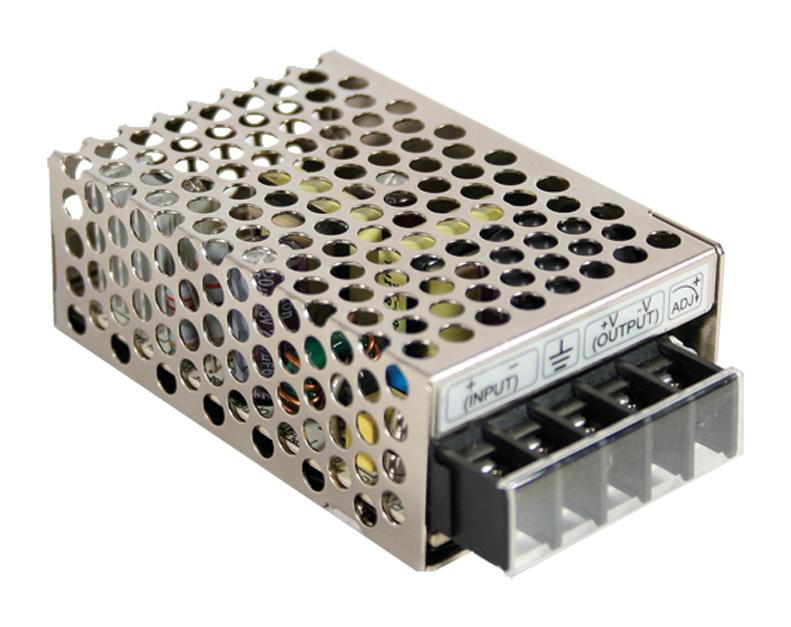

MEAN WELL SD15B5 industrial power converter
The SD-15B series is a 15W single output DC-DC converter designed for reliable power supply applications. It features a wide input range, built-in EMI filter, and protections including short circuit, overload, and overvoltage protections. The device offers adjustable output voltage from 4.75V to 5.5V, with low ripple and noise, high efficiency, and a compact size. Suitable for industrial automation, control systems, and other electronic applications requiring stable power conversion with high reliability and EMI compliance.
MEAN WELL SD15B5 industrial power converter Specifications:
- Input Voltage Range: 92~18VDC, 18~36VDC, 36~72VDC
- Output Power: 15W
- Rated Current: 3A at 12V, 1.25A at 24V, 0.625A at 48V
- Output Voltage Range: 4.75~5.5VDC adjustable
- Ripple & Noise: Max. 100mVp-p to 150mVp-p depending on model
- Efficiency: Up to 79%
- Protection: Short circuit, overload (105-160%), overvoltage (5.75-6.75V, 13.8V, 16.2V, 27.6-32.4V)
- Operating Temperature: -10°C to +60°C
- Humidity: 20-90% RH non-condensing
- Isolation Voltage: Up to 1kV
- Dimensions: 78mm x 51mm x 28mm
- MTBF: Over 644,200 hours (MIL-HDBK-217F, 25°C)
Buy the Buy Mean Well SD-15B Series Part Number SD15B5 Online
Enhance your electronic systems with the reliable SD-15B series 15W single output DC-DC converter from Mean Well. Featuring a wide input range, low ripple noise, and multiple protections including short circuit, overload, and overvoltage, this compact device ensures stable power delivery for industrial automation, control equipment, and sensitive electronics. It is backed by high MTBF, EMI compliance, and a two-year warranty, making it a smart choice for building robust, efficient, and safe power solutions easily available for online purchase.
Buy Mean Well SD15B5 now and experience unmatched reliability and high efficiency for your industrial power supply needs.
Frequently Asked Questions
Where can I buy MEAN WELL SD15B5?
You can click on the BUY or RFQ button to purchase SD15B5 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SD15B5?
You can download the SD15B5 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SD15B5?
MEAN WELL
