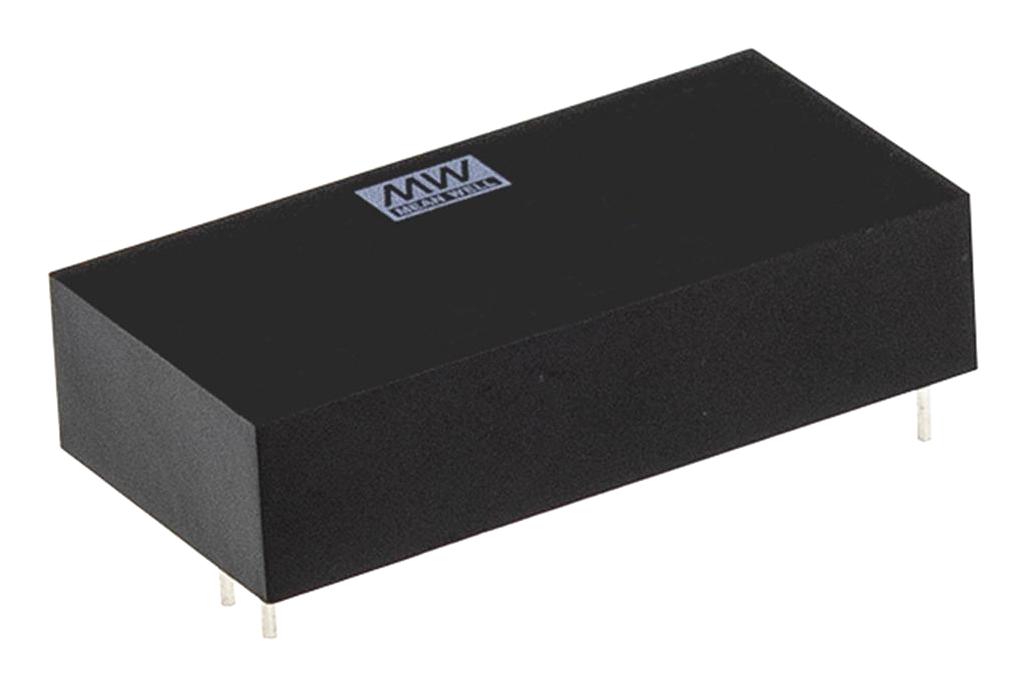

MEAN WELL MDS15A24 Medical Power Converter
The MDS15 series is a medical-grade DC-DC converter providing 15W of power within a compact 2x1-inch package, suitable for medical devices requiring safety and reliability. It features a wide input range of 9-75V, high efficiency up to 88%, and an operating temperature from -40°C to +90°C. Compliant with IEC60601-1 standards with 2xMOPP isolation, it offers short circuit, overload, and under-voltage protections, along with reinforced 4000VAC isolation. Its low leakage current makes it ideal for medical applications like oxygen monitors, medical carts, and oral care equipment.
MEAN WELL MDS15A24 Medical Power Converter Specifications:
- Input Voltage Range: 9-75Vdc (Models: 9~18V, 18~36V, 36~75V)
- Output Voltage: 5V, 12V, 15V, 24V (depending on model)
- Rated Power: 15W
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +90°C
- Isolation Voltage: 4000VAC (Reinforced isolation)
- Protection: Short circuit, Overload (110-185%), Under Voltage Lockout
- Ripple & Noise: 60mVp-p
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Switching Frequency: 250-300KHz
- Dimensions: 50.8mm x 25.4mm x 12mm
- Case Material: UL94V-0 plastic
- Safety Standard: IEC60601-1 (2xMOPP), EAC TP TC 004
- Moisture & Environmental Resistance: 20-90% RH non-condensing; storage -55°C to +125°C
- Vibration: 10-500Hz, 2G
- Soldering Temp.: 260°C for 1-3 sec
- MTBF: 1060K hours
Buy the Buy Mean Well Medical Grade DC-DC Converter Part Number MDS15A24 Online
Experience reliable medical-grade power with the Mean Well MDS15A24 DC-DC converter. Designed for medical equipment such as oxygen monitors, carts, and oral care devices, this 15W module offers high efficiency up to 88%, wide input voltage range, and reinforced 4000VAC isolation. It meets IEC60601-1 safety standards with 2xMOPP isolation, ensuring safety and performance under extreme conditions. Its compact size, low leakage current, and robust protections make it ideal for critical healthcare applications. Purchase online today for assured quality, safety, and durability in your medical systems.
Get Mean Well MDS15A24 today—built for precision and long-lasting durability in medical power supplies.
Frequently Asked Questions
Where can I buy MEAN WELL MDS15A24?
You can click on the BUY or RFQ button to purchase MDS15A24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS15A24?
You can download the MDS15A24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS15A24?
MEAN WELL
