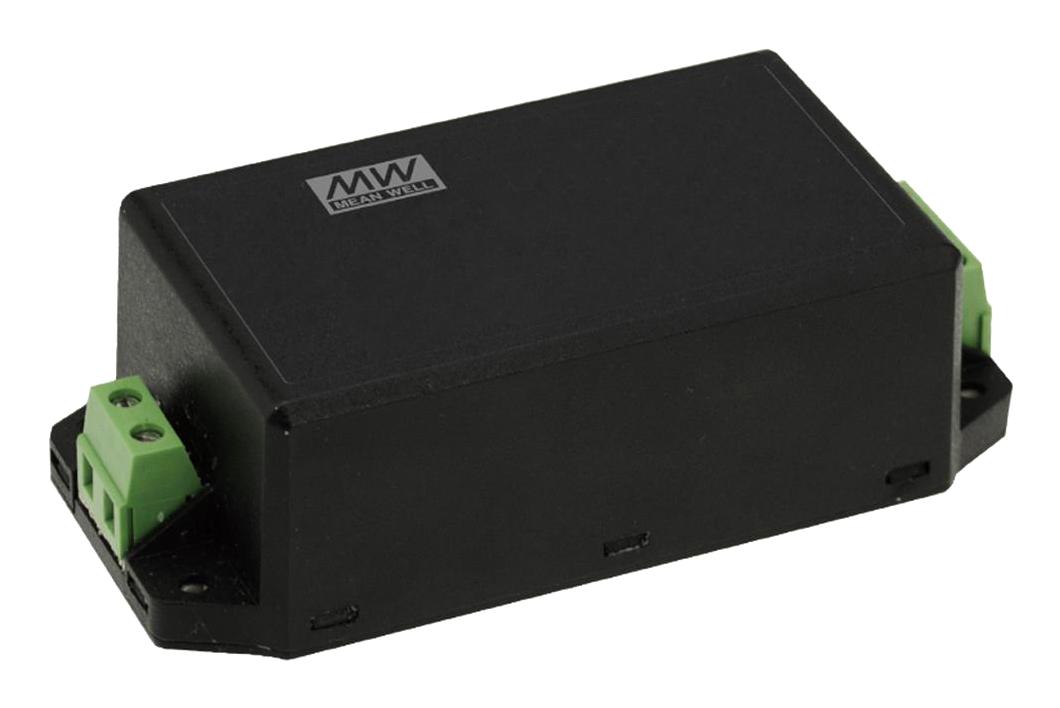

MEAN WELL MPM6524ST Medical Power Supply
The MPN-65 is a compact, medical-grade power supply providing 65W output with high efficiency up to 93%. Designed for IEC/EN60601-1 and ANSI/AAMI ES60601-1 standards, it features double insulation, ultra-low leakage current, and is suitable for BF applications. Its small size (87x52x29.5mm) allows easy integration into portable medical devices, medical monitors, and other healthcare equipment. It offers wide input voltage, excellent electromagnetic compatibility, and multiple protections, making it ideal for reliable and safe medical power solutions in demanding environments.
MEAN WELL MPM6524ST Medical Power Supply Specifications:
- Power Output: 65W
- Input Voltage: 80-264VAC, 113-370VDC
- Output Voltages: 12V, 15V, 24V, 48V
- Peak Power: 71W for 10 sec.
- Efficiency: up to 93%
- Leakage Current: <100μA
- Operating Temperature: -30°C to +80°C
- Dimension: 87x52x29.5mm (PCB mount), 109x52x33.5mm (screw terminal)
- Isolation: 4KVAC
- Protection: Short circuit, Overload, Over voltage, Over temperature
- EMC: Class B
- Altitude: Up to 4000 meters
- Certifications: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Vibration: 2-5G, 10-500Hz
- MTBF: 563,440 hours
- Soldering Temperature: 260°C ± 5°C for max 10 seconds
Buy the Mean Well Series MPM-65 Medical Power Supply: MPM6524ST
Purchase the high-reliability Mean Well MPM-65 medical power supply online today. With 65W output and up to 93% efficiency, it's perfect for portable and stationary medical devices. This compact, IEC60601-1 compliant unit features ultra-low leakage current, high EMC performance, and robust protections including short circuit, overvoltage, and thermal shutdown. Designed for demanding healthcare environments, it ensures safe, stable power with excellent electromagnetic compatibility. Order now to enhance your medical equipment with a proven, high-quality power solution.
Order your Mean Well Series MPM-65 medical power supply today and give your medical devices the reliable and efficient power they need.
Frequently Asked Questions
Where can I buy MEAN WELL MPM6524ST?
You can click on the BUY or RFQ button to purchase MPM6524ST from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPM6524ST?
You can download the MPM6524ST datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPM6524ST?
MEAN WELL
