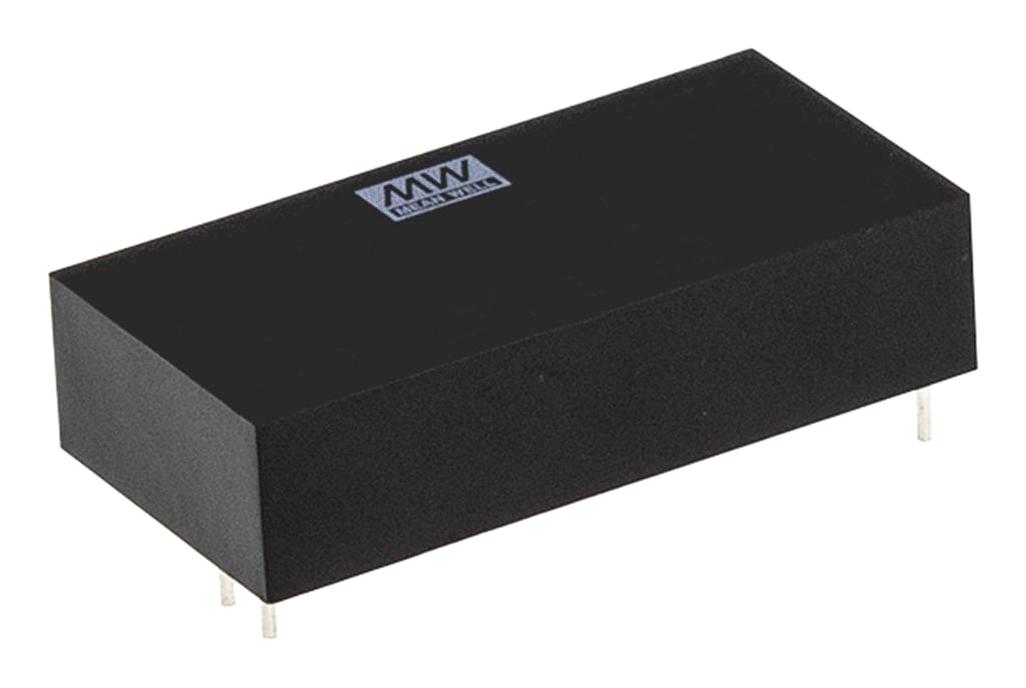

MEAN WELL MDS15B12 Medical Power Converter
The MDS15B12 is a 15W medical-grade isolated and regulated DC-DC converter in a compact 2x1 inch package. It features a 2:1 wide input range of 18~36V, high efficiency up to 88%, and wide operating temperature from -40°C to +90°C. Certified to IEC60601-1 for medical safety, it provides reinforced 4000VAC isolation, low leakage current below 5μA, and protections against short circuit, overload, and under voltage lockout. Ideal for medical devices requiring reliable power conversion in a compact form factor.
MEAN WELL MDS15B12 Medical Power Converter Specifications:
- Input voltage range: 18~36V
- Output voltage: 12V
- Rated power: 15W
- Efficiency: up to 88%
- Isolation voltage: 4000VAC
- Operating temperature: -40°C to +90°C
- Short circuit protection: Continuous, automatic recovery
- Overload protection: 110% to 185% rated output power
- Under voltage lockout: 15V DC for 24V input
- Ripple & noise: 60mVp-p
- Line regulation: 0.5%
- Load regulation: +0.5%
- Switching frequency: 250-300KHz
- Mechanical dimensions: 50.8 x 25.4 x 12mm
- Case material: UL94V-0 plastic
- Safety standards: IEC60601-1, EAC TP TC 004
- Vibration: 10-500Hz, 2G
Buy the Mean Well Series MDS Medical Grade Power Converter: MDS15B12
Experience reliable medical-grade power with the MDS15B12, a 15W DC-DC converter featuring a 2:1 input range, high efficiency up to 88%, and wide temperature operation from -40°C to +90°C. Certified to IEC60601-1 standards, it offers reinforced 4000VAC isolation for patient safety, low leakage current below 5μA, and robust protections including short circuit, overload, and under voltage lockout. Its compact 2x1 inch design makes it ideal for medical devices like carts, monitors, and portable equipment, ensuring dependable performance in demanding environments.
Order your Mean Well Series MDS15B12 medical power converter today and ensure reliable, safe power supply for your critical medical applications.
