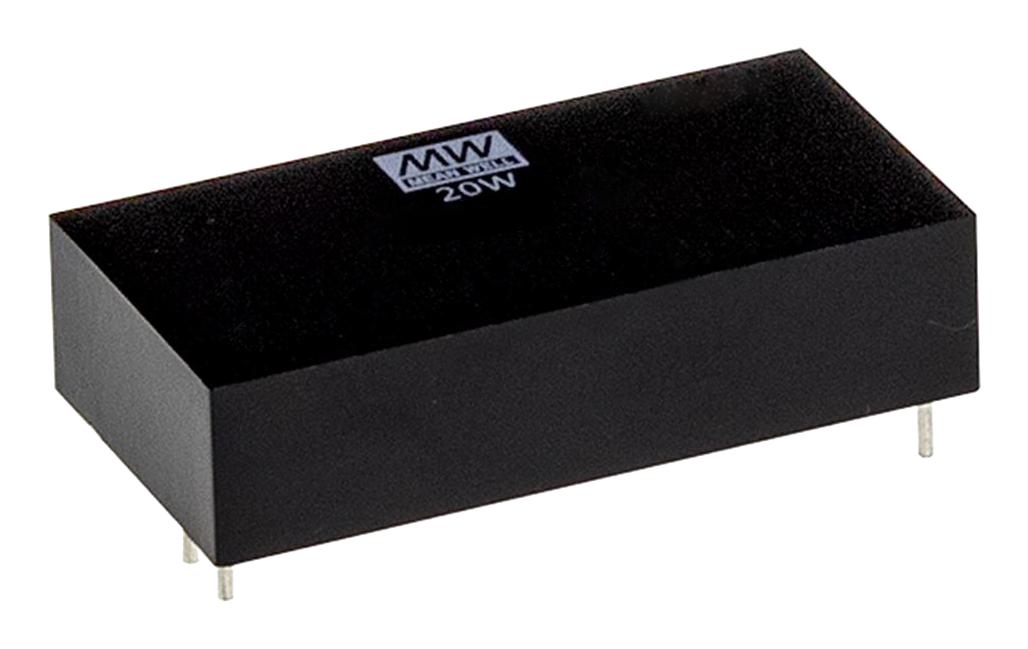

MEAN WELL MDS20A24 Medical Grade Power Module
The MDS20A24 is a 20W medical grade DC-DC converter in a 2x1-inch package, designed for medical systems requiring reliable and safe power conversion. It features a wide input range of 18-36V, high efficiency up to 90%, and supports various outputs including 5V, 12V, 15V, and 24V. The unit complies with IEC60601-1 standards with 2xMOPP isolation, operates from -40°C to +90°C, and provides continuous short circuit, overload, and input under-voltage protections. Its reinforced isolation and low leakage current make it ideal for sensitive medical devices.
MEAN WELL MDS20A24 Medical Grade Power Module Specifications:
- Power Rating: 20W
- Input Voltage Range: 18-36V (B model)
- Output Voltages: 5V, 12V, 15V, 24V
- Efficiency: Up to 90%
- Isolation Voltage: 4000VAC I/O
- Operating Temperature: -40°C to +90°C
- Protection: Short circuit (continuous), overload (110-180%), input under voltage
- Safety Standard: IEC60601-1 (2xMOPP)
- Leakage Current: <5μA
- Dimensions: 50.8mm x 25.4mm x 12mm (2x1x0.47 inch)
- Case Material: UL94V-0 plastic
- Humidity: 20%-90%, non-condensing
- Soldering Temperature: Max 260°C for 1-3 sec
- Vibration: 10-500Hz, 2G
- MTBF: 1016K hrs at 25°C
- Protection Features: Short circuit, overload, under voltage lockout
Buy the Buy Mean Well MDS20A24 Medical Grade DC-DC Converter Part Number MDS20A24 Online
Purchase the Mean Well MDS20A24 medical power module online to ensure your medical equipment operates safely and reliably. Its wide input range and high efficiency up to 90% make it ideal for medical systems requiring precise power regulation. Certified with IEC60601-1 standards, it features reinforced isolation, low leakage current, and operates from -40°C to +90°C, providing stable performance in demanding environments. Easy to integrate with various output options, this module is vital for medical carts, oxygen monitors, and other critical devices. Buy online now for fast delivery and trusted quality.
Buy Mean Well MDS20A24 now and experience unmatched reliability and performance in medical power conversion solutions.
Frequently Asked Questions
Where can I buy MEAN WELL MDS20A24?
You can click on the BUY or RFQ button to purchase MDS20A24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS20A24?
You can download the MDS20A24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS20A24?
MEAN WELL
