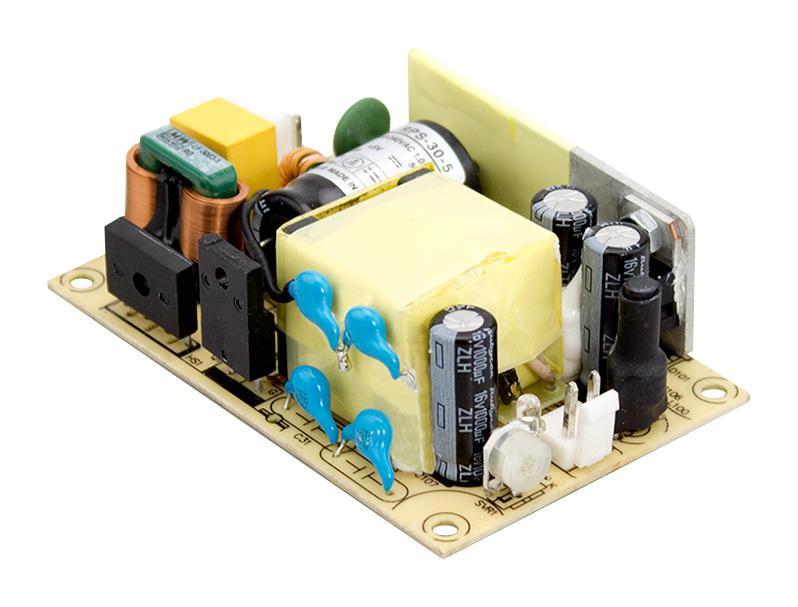

MEAN WELL RPS3075 Medical Power Supply
RPS-30 is a compact, highly reliable 30W power supply designed for medical applications, featuring high efficiency up to 91%, extremely low no-load power consumption below 0.1W, and a 3" x 2" footprint. It accepts 80~264VAC input and provides various output voltages from 3.3V to 48V, making it suitable for Class II systems and BF-rated devices. Conforming to international standards, it ensures safety with low leakage current under 100A and supports operation at altitudes up to 4000 meters. Ideal for medical monitors, sleep apnea devices, and hemodialysis machines, the RPS-30 guarantees dependable performance and safety in tissue-contact medical equipment.
MEAN WELL RPS3075 Medical Power Supply Specifications:
- Power Rating: 30W
- Input Voltage: 80~264VAC
- Output Voltage Range: 3.3V to 48V
- Maximum Output Current: 6A (for 3.3V and 5V outputs)
- Efficiency: up to 91%
- No load Power Consumption: <0.1W
- Leakage Current: <100A
- Protection: Short circuit, Overload, Overvoltage
- Operating Temperature: -30°C to +70°C
- Operating Altitude: up to 4000 meters
- Dimensions: 76.2mm (L) x 50.8mm (W) x 24mm (H)
- Safety Compliance: ANSI/AAMI ES60601-1, TUV EN60601-1
- Isolation: 2xMOPP (primary to secondary)
- Cooling Method: Free air convection
- MTBF: 628.7K hours
Buy the Mean Well RPS-30 Reliable Medical Power Supply for Industrial Applications
Purchase the reliable medical power supply RPS-30 online today. Engineered for high efficiency, safety, and durability, it is suitable for critical medical equipment like monitors, sleep apnea devices, and hemodialysis machines. With a compact 3" x 2" design, universal input voltage, and low no-load power consumption, this power supply ensures continuous reliable operation even at high altitudes. Perfect for medical professionals and device manufacturers seeking dependable power solutions compliant with international safety standards.
Get Mean Well RPS-30 today—built for precision and long-lasting durability in medical power applications.
Frequently Asked Questions
Where can I buy MEAN WELL RPS3075?
You can click on the BUY or RFQ button to purchase RPS3075 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS3075?
You can download the RPS3075 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS3075?
MEAN WELL
