MEAN WELL MFM3024 Medical Power Supply Module
The MFM-30 series is a compact, high-reliability medical power supply module offering 30W power with wide input voltage range from 80 to 264VAC. It features ultra-low leakage current (<80μA), high efficiency up to 91%, and meets IEC/EN60601-1 safety standards with 2 x MOPP double insulation, suitable for BF applications. The module supports operating temperatures from -40°C to +85°C, has protections against short circuit, overload, and overvoltage, and provides 4kV isolation. Ideal for portable medical devices, clinical workstations, and medical monitors requiring high safety and stable performance.
MEAN WELL MFM3024 Medical Power Supply Module Specifications:
- Power Rating: 30W
- Input Voltage Range: 80~264VAC
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, 48V
- Rated Currents: 6A (3.3V, 5V), 2.5A (12V), 2A (15V), 1.34A (24V), 0.63A (48V)
- Efficiency: Up to 91%
- Leakage Current: <80μA
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 4kV
- Safety Certification: IEC/EN60601-1, ANSI/AAMI ES60601-1
- Isolation Level: 2xMOPP (Double Insulation)
- Dimensions: 65.5mm x 35mm x 23mm
- Mechanical: Compact, high-density design, suitable for portable medical devices
- Protections: Short circuit, Overload, Over voltage
- Compliance: EMI class B,UL/CSA approved, RoHS compliant

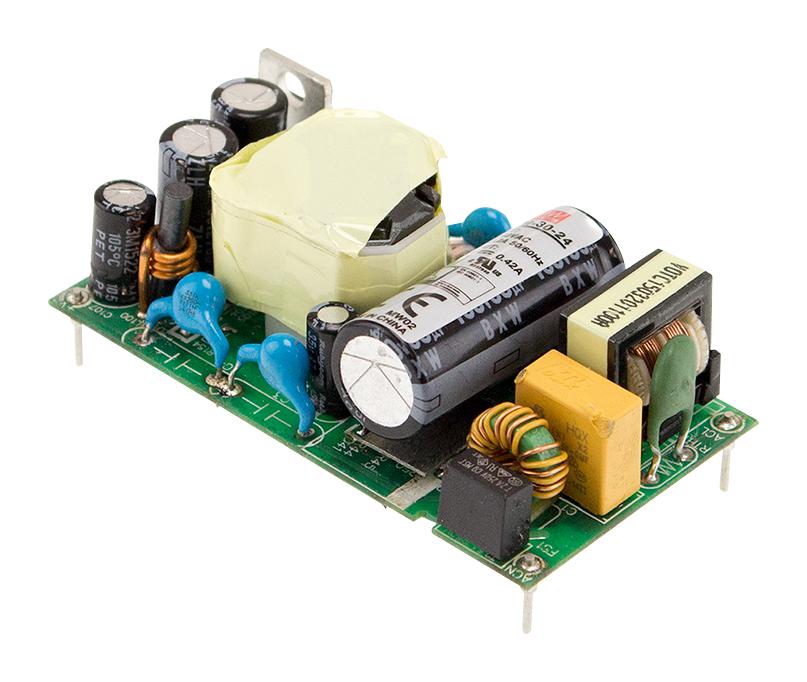

Buy the Medall Medical Series MFM On Board Power Supply: MFM3024
Enhance your medical device setup with the Medall MFM3024 power supply module, offering 30W high-efficiency, ultra-low leakage current, and comprehensive safety certifications. Its compact size and wide input voltage range make it ideal for portable diagnostics, clinical workstations, and patient-contact equipment. The module provides reliable performance under extreme temperatures, with protections against short circuit, overload, and overvoltage. Perfect for OEMs and medical equipment manufacturers seeking durable, certified power solutions for demanding healthcare environments.
Get Medall MFM3024 today—built for precision, high safety standards, and long-lasting durability in medical applications.
Frequently Asked Questions
Where can I buy MEAN WELL MFM3024?
You can click on the BUY or RFQ button to purchase MFM3024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MFM3024?
You can download the MFM3024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MFM3024?
MEAN WELL
