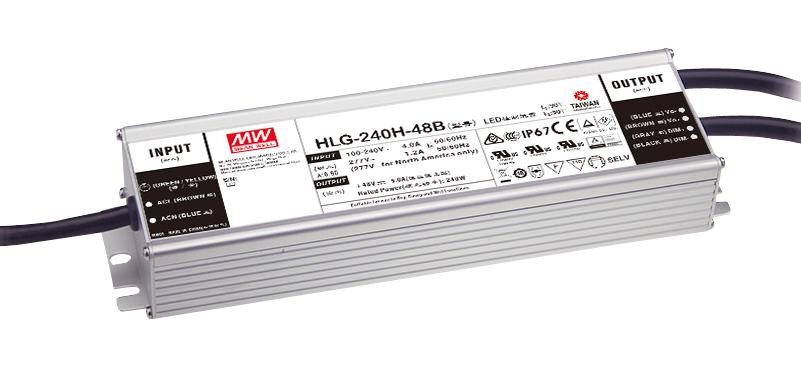

MEAN WELL HLG240H48B High Power LED Driver
The HLG-240H series is a high-efficiency 240W LED driver that supports both constant voltage and constant current modes, operating from 90 to 305VAC and providing rated voltages between 12V and 54V. Its IP67/IP65 housing ensures suitability for indoor and outdoor use, including LED street and high-bay lighting. With features like dimming options, an operating temperature range of -40°C to +90°C, lifetime over 62,000 hours, and a rugged metal build, this driver offers reliable performance in hazardous locations with a 7-year warranty. Its fanless design enhances durability and energy efficiency.
MEAN WELL HLG240H48B High Power LED Driver Specifications:
- Power: 240W
- Input Voltage Range: 90 ~ 305VAC
- Output Voltage Range: 12V to 54V (models vary)
- Rated Current: 16A (12V), 14.5A (15V), 12A (20V), 10A (24V), 8A (30V), 6.7A (36V), 5.72A (42V), 5A (48V), 4.45A (54V)
- Efficiency: Up to 93.5%
- Ripple & Noise: Max. 150-350mVp-p depending on model
- Ingress Protection: IP67 / IP65 with options for indoor or outdoor use
- Operating Temperature: -40°C to +90°C
- Lifetime: >62,000 hours
- Certifications: UL, CSA, EN, GB, KC, EAC, and others
- Dimming: 3-in-1 (1-10VDC, PWM, resistance), optional timer dimming
- Dimensions: Approximately 244.2mm x 68mm x 38.8mm (model dependent)
- Protection features: Over current, over voltage, thermal shutdown, short circuit
- Safety Standards: UL, EN, CSA, GB, KC approved
Buy the Mean Well Series 240W LED Driver: HLG-240H48B
Secure the durable and energy-efficient HLG-240H48B LED driver online today. This advanced power supply supports dual-mode output, offers IP67/IP65 ingress protection for versatile indoor and outdoor applications, and features multiple dimming options for optimal control. With a lifespan over 62,000 hours and efficiency of up to 93.5%, it ensures reliable operation in harsh environments from -40°C to +90°C. Invest now to improve your LED lighting system’s performance and longevity with this high-quality, certified driver.
Buy Mean Well HLG-240H48B now and experience unmatched reliability and performance in outdoor and high-power LED lighting systems.
Frequently Asked Questions
Where can I buy MEAN WELL HLG240H48B?
You can click on the BUY or RFQ button to purchase HLG240H48B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG240H48B?
You can download the HLG240H48B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG240H48B?
MEAN WELL
