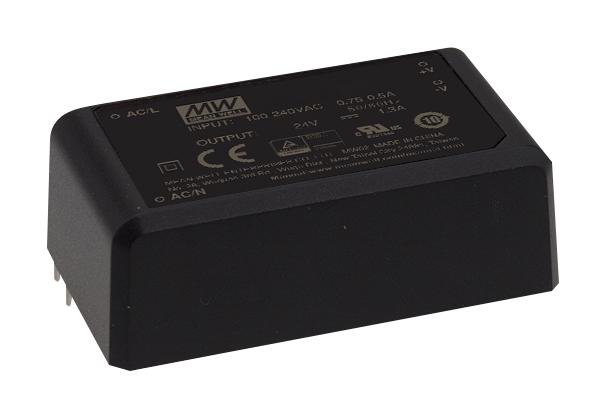

MEAN WELL MPM305 medical power supply
The MPM-30 series is a compact, high-reliability medical power supply offering 30W power output, designed for safety in medical applications. It features low no-load power consumption below 0.075W, high efficiency up to 91%, and complies with IEC/EN60601-1 and ANSI/AAMI ES60601-1 standards. Its rugged design includes a metal potting enclosure, 4KVAC isolation, EMI Class B, and is suitable for BF (patient contact) devices. It supports wide input voltage ranges of 80-264VAC, operating temperatures from -40°C to +85°C, with protections for short circuit, overload, and over-voltage. The device is ideal for portable medical equipment, workstations, monitors, and exam instruments, ensuring safety, durability, and low leakage current.
MEAN WELL MPM305 medical power supply Specifications:
- Power Output: 30W
- Input Voltage Range: 80-264VAC
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, 48V
- Current Ratings: 6A (3.3V, 5V), 2A (12V, 15V, 24V), 0.63A (48V)
- Efficiency: Up to 91%
- Leakage Current: <80μA
- Operating Temperature: -40°C to +85°C
- Isolation: 4KVAC
- Protection: Short circuit, overload, over-voltage
- Certifications: IEC60601-1, EN60601-1, UL, CSA
- Dimensions: 69.5 x 39 x 24 mm (PCB mounting); 91 x 39 x 28.5 mm (screw terminal)
- Vibration Resistance: 5G anti-vibration
- EMC Compliance: Class B
- Humidity Range: 20% to 90% RH non-condensing
- MTBF: 79,000 hours
- Design: Double insulated (no FG), UL94V-0 material
Buy the MeanWell Series Medical Power Supply: MPM-30-5V
Purchase the MeanWell Series MPM-30-5V medical power supply online today and benefit from its high efficiency, low leakage current, and robust safety features. This 30W module is perfect for portable and BF applications, offering wide input voltage compatibility from 80 to 264VAC, operating temperatures from -40°C to +85°C, and certified standards including IEC60601-1. Its compact design, high durability, and protection features make it ideal for medical monitors, portable devices, and clinical workstations. Buy online now for dependable medical-grade power.
Order your MeanWell Series MPM-30-5V medical power supply today and ensure reliable, safe power for your critical healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL MPM305?
You can click on the BUY or RFQ button to purchase MPM305 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPM305?
You can download the MPM305 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPM305?
MEAN WELL
